Item shown:

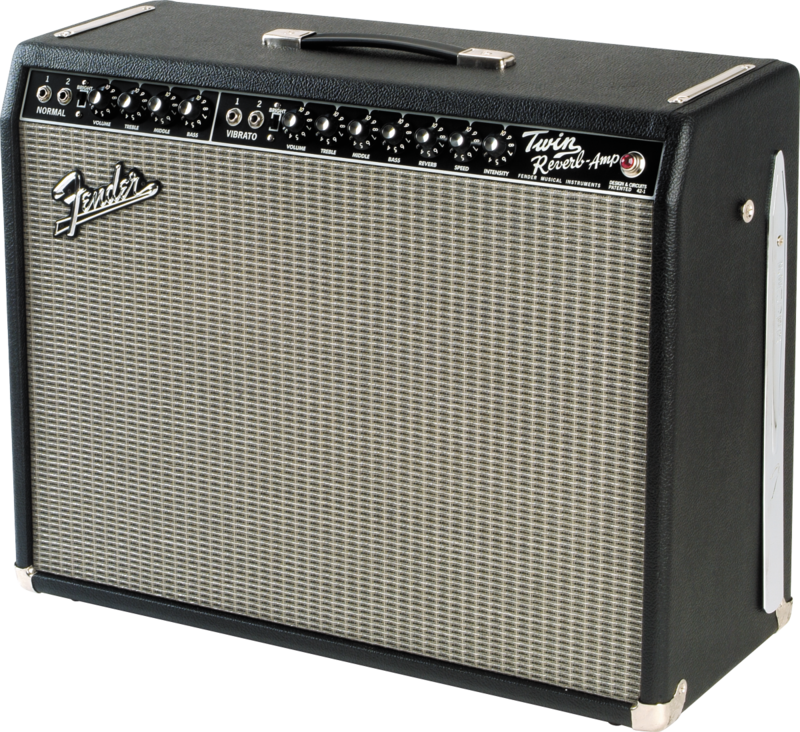

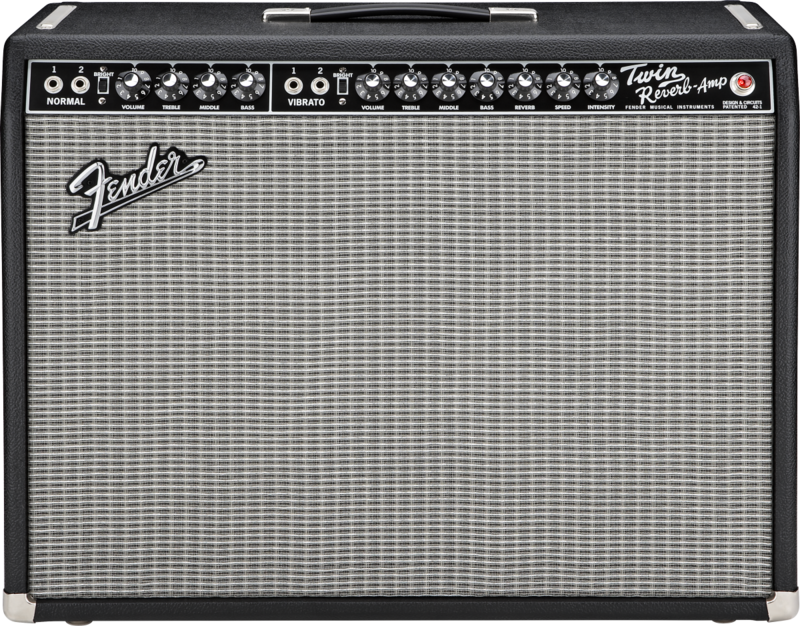

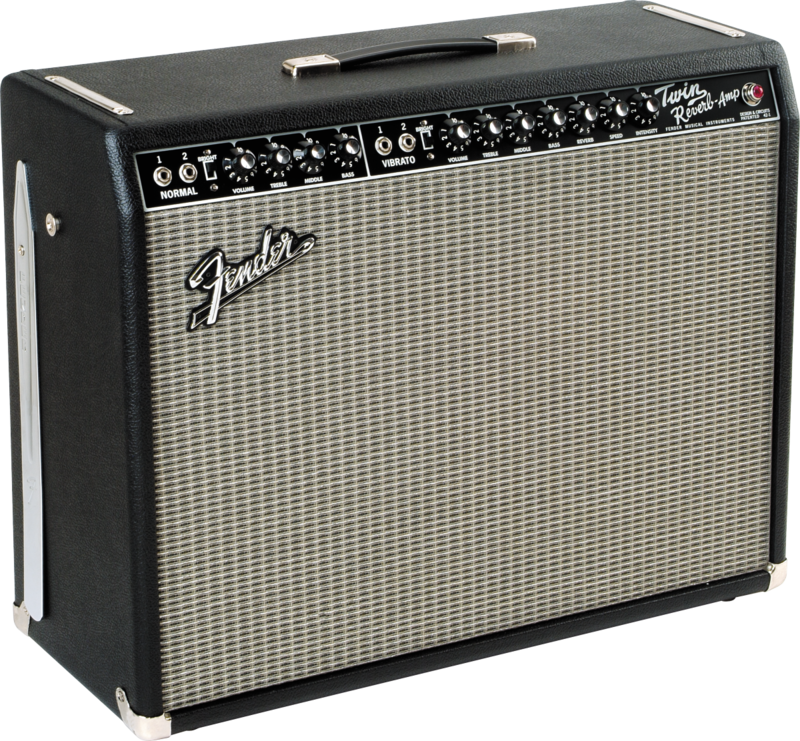

'65 Twin Reverb®, 120V
Model #:
0217300000
UPC #:
717669051730

This amp has seen action in every imaginable venue and remains indispensable to this day. Be it rock, jazz, country or anything else, this is what a clean electric guitar sounds like - or add an upside-down Stratocaster® guitar and a fuzz box ...

The 85-watt (at 4 ohms) reissue '65 Twin Reverb® features four 6L6 Groove Tubes® output tubes, four 12AX7 preamp tubes, two 12AT7 preamp tubes, two 12" 8-ohm Jensen® C-12K speakers, dual channels (normal and vibrato), Fender® reverb, vibrato, two-button reverb and vibrato on-off footswitch, tilt-back legs, black textured vinyl covering and silver grille cloth.

Features
85 watts
Dual 12" Jensen® C-12K speakers
Dual channels (normal, vibrato)
Fender reverb and tremolo ("vibrato")
Tilt-back legs
Classic Fender look

General
SeriesAmerican Vintage
ColorBlack and Silver
Amplifier TypeTube
Country Of OriginUS
PlatformPro Tube

Electronics
ControlsNormal Channel: Bright Switch, Volume, Treble, Middle, Bass; Vibrato Channel: Bright Switch, Volume, Treble, Middle, Bass, Reverb; Vibrato: Speed, Intensity
Control PanelNormal Channel: Bright Switch, Volume, Treble, Middle, Bass; Vibrato Channel: Bright Switch, Volume, Treble, Middle, Bass, Reverb; Vibrato: Speed, Intensity
InputsFour - (1/4", Two Normal and Two Vibrato)
ChannelsTwo - (Normal and Vibrato)
EffectsReverb, Vibrato
Effects LoopNA
Connection Type1/4"
Voltage120V
Wattage85 Watts into 4 Ohms

Hardware
Control KnobsVintage-Style Skirted Black Plastic
Amplifier CoveringBlack Textured Vinyl
Cabinet MaterialBirch Plywood
Grille ClothSilver
HandleMolded Plastic Strap with Nickel-Plated Caps
Tilt Back LegsMedium, 16" (40.64 cm), PN 0990712000
Amplifier JewelRed Jewel
Speaker JackTwo 1/4" Parallel (Internal and External)
Front PanelBlack
Reverb Tank4-Spring, 8 ohm Spring Reverb Unit 4AB3C1B (p/n 0064063049)
Reverb Tank Type4-Spring, 8 ohm Spring Reverb Unit 4AB3C1B (p/n 0064063049)

Speakers
SpeakersTwo - 12" Jensen® C12K with Ceramic Magnets
Total Impedance4 ohms

Tubes
Power Tubes4 x 6L6
Preamp Tubes4 x 12AX7, 2 X 12AT7
RectifierSolid State

Measurements
Dimensions15.50x26.30x31.30 IN
Shipping Weight75.85 LB
Product Depth10.375" (21.9 cm)
Product Height19.87" (50.46 cm)
Product Width26.5" (67.31 cm)
Power Tubes4 x 6L6
Shipping Length31.30 IN
Shipping Height15.50 IN
Shipping Width26.30 IN

Accessories
Footswitch2-Button Vintage Style (Reverb On/Off, Vibrato On/Off), P/N: 0994058000 (Included)

Miscellaneous
DisclaimerWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Power CableNon-IEC
