Fender Authorized Dealer - This item is Brand New with Full Factory Warranty.

Our luthiers at Fuller's Guitar thoroughly inspect and set up each instrument (to factory spec action and neck relief) prior to shipping to make sure that your new instrument is gig-ready right out of the box.

ITEM SHOWN:

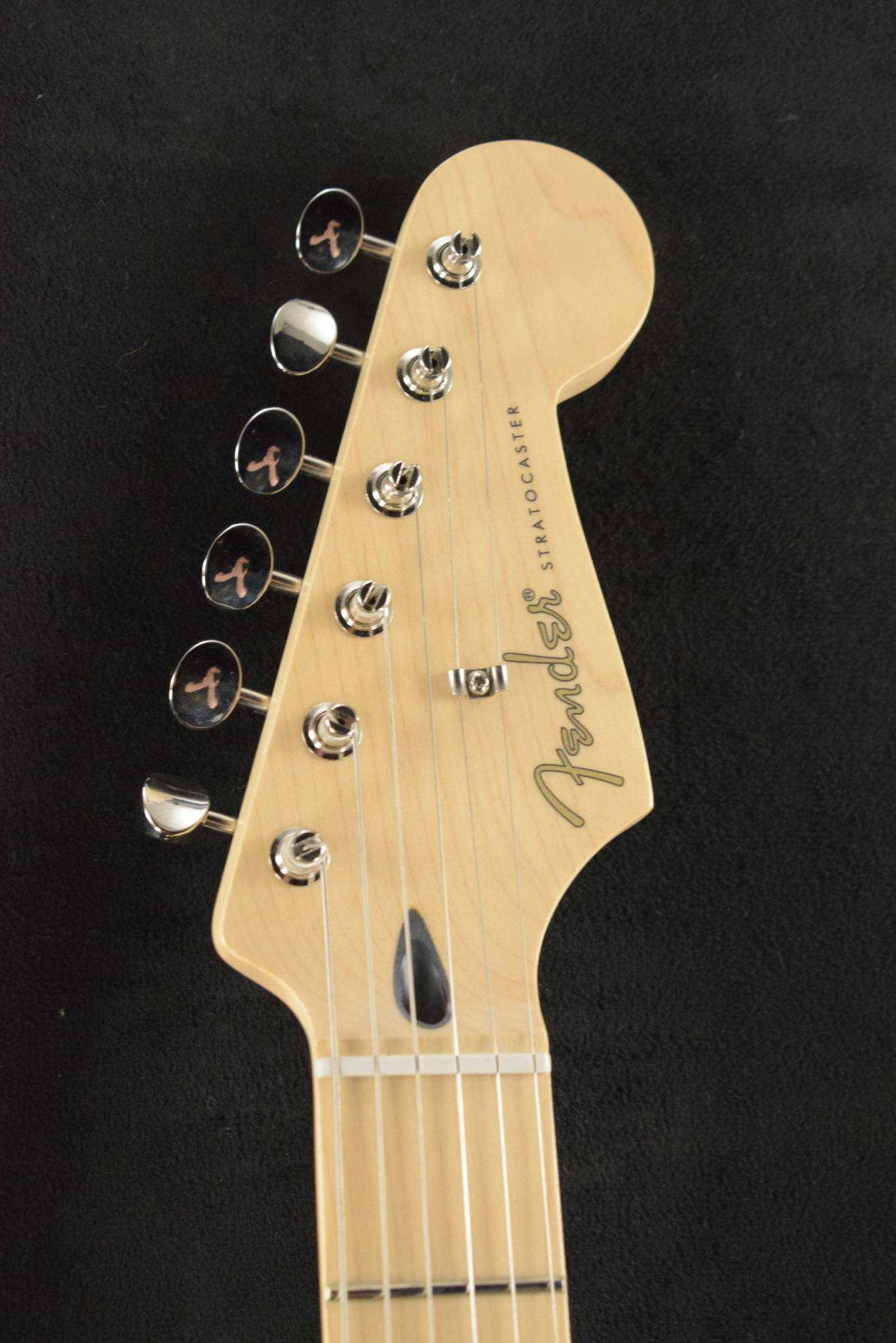

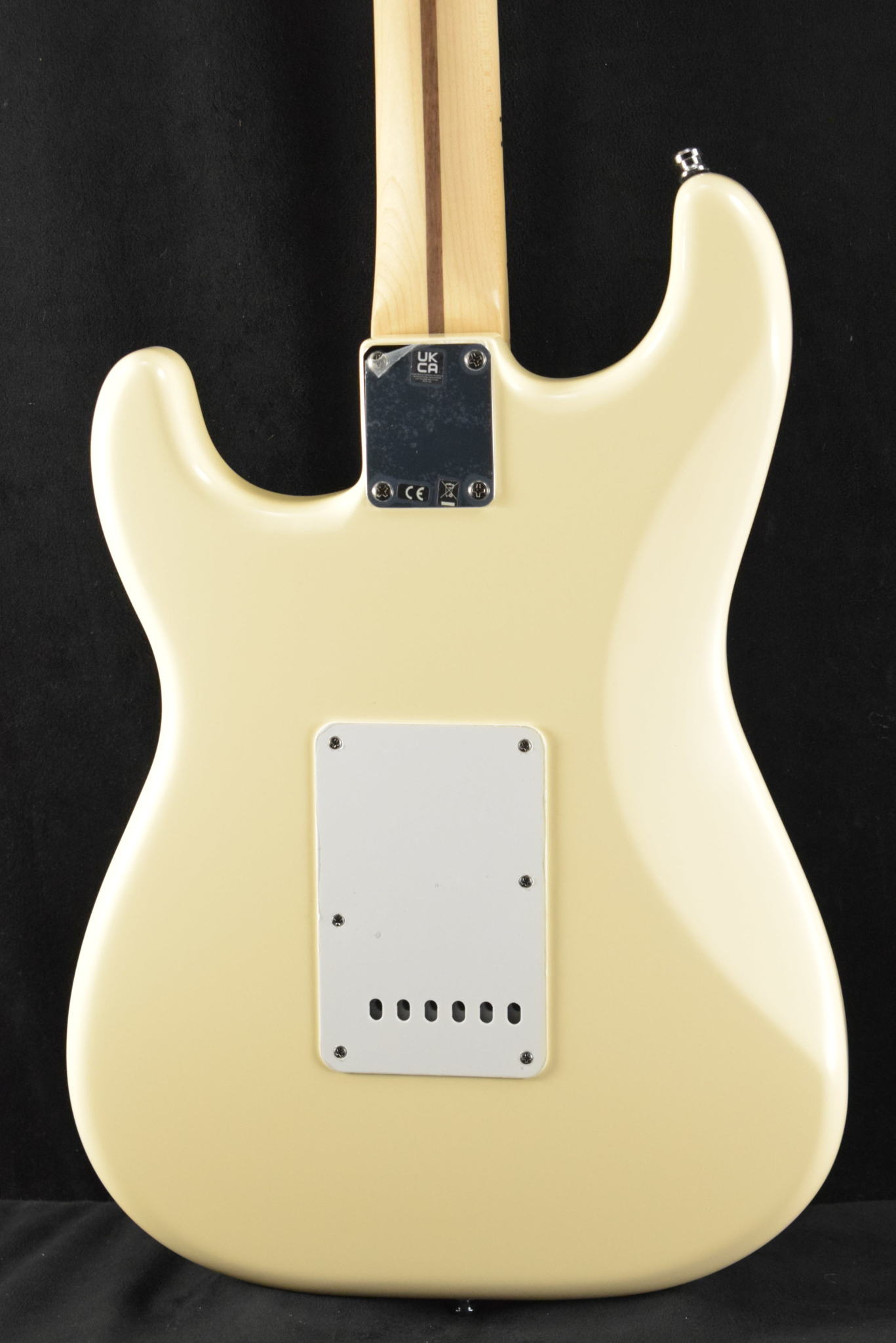

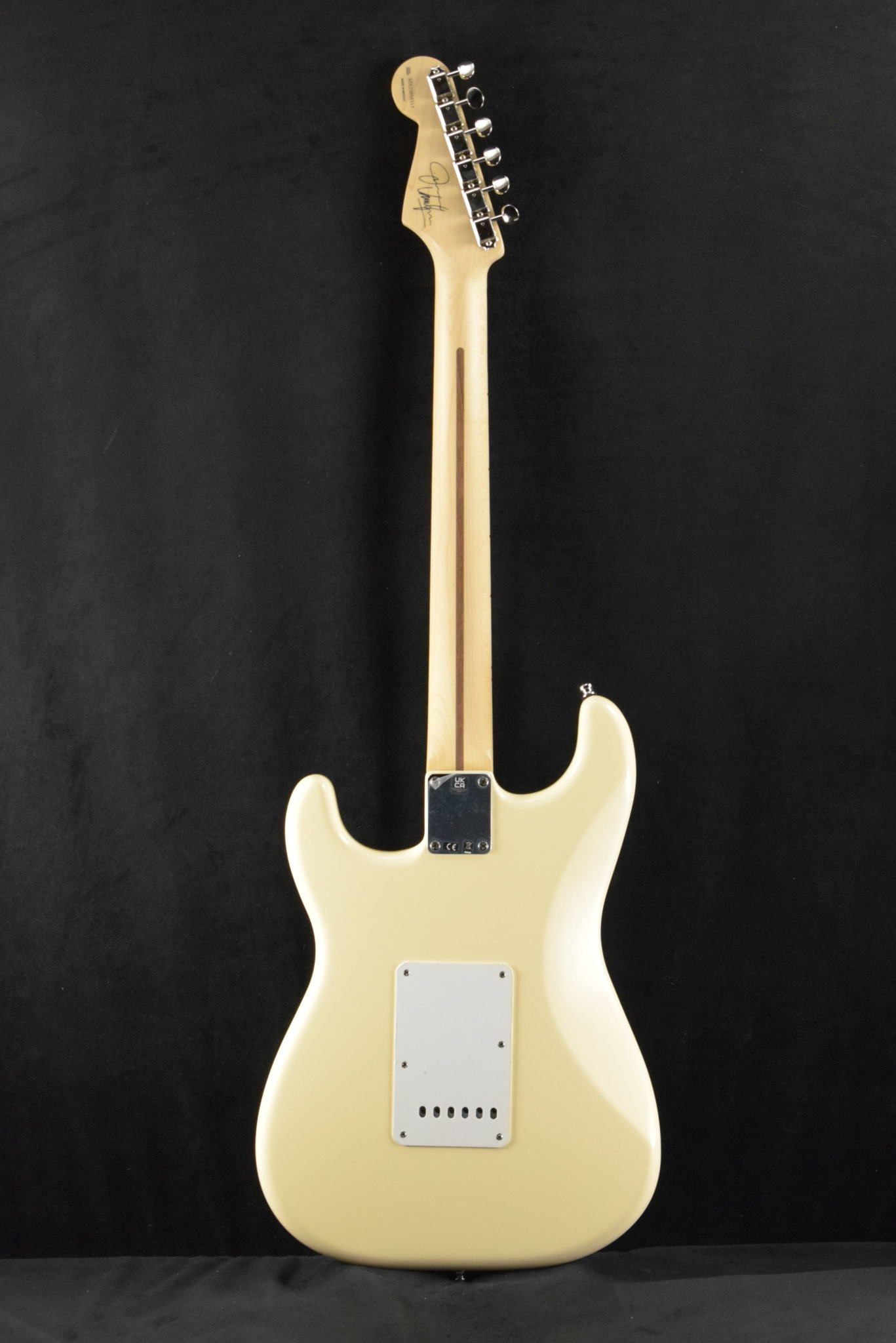

Jimmie Vaughan Tex-Mex™ Strat®, Maple Fingerboard, Olympic White
MODEL #:
0139202305
UPC #:
717669017552
CASE/GIG BAG:
Included: Deluxe Gig Bag

7lbs 13oz

The Jimmie Vaughan Tex-Mex™ Strat® guitar features an alder body, specially shaped tinted maple neck, medium jumbo frets, single-coil Tex-Mex neck and middle pickups, extra hot Tex-Mex bridge pickup, single-ply white pickguard and vintage-style hardware.

FEATURES
Tinted maple neck with "soft V" profile
9.5"-radius maple fingerboard with 21 medium jumbo frets
Tex-Mex single-coil neck and middle pickups (no tone control on middle pickup)
Extra-hot Tex-Mex single-coil bridge pickup
Five-way pickup switch
Single-ply white pickguard

General
SERIESArtist
ORIENTATIONRight-Hand
COLOROlympic White
COUNTRY OF ORIGINMX
PLATFORMArtist

Neck
NECK MATERIALMaple
NECK FINISHSatin Urethane
NECK SHAPESoft "V"
FINGERBOARD RADIUS9.5" (241 mm)
FINGERBOARD MATERIALMaple
POSITION INLAYSBlack Dot
NUMBER OF FRETS21
TRUSS RODStandard
STRING NUTSynthetic Bone
NUT WIDTH1.650" (42 mm)
NUT MATERIALSynthetic Bone

Body
BODYAlder
BODY FINISHGloss Polyester
BODY SHAPEStratocaster®
BODY MATERIALAlder
sku-image

Hardware
BRIDGE6-Saddle American Vintage Synchronized Tremolo
PICKGUARD1-Ply White
CONTROL KNOBSWhite Plastic
SWITCH TIPWhite
HARDWARE FINISHChrome
TUNING MACHINESVintage-Style
STRINGSFender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
TREMOLO ARMAmerican Vintage

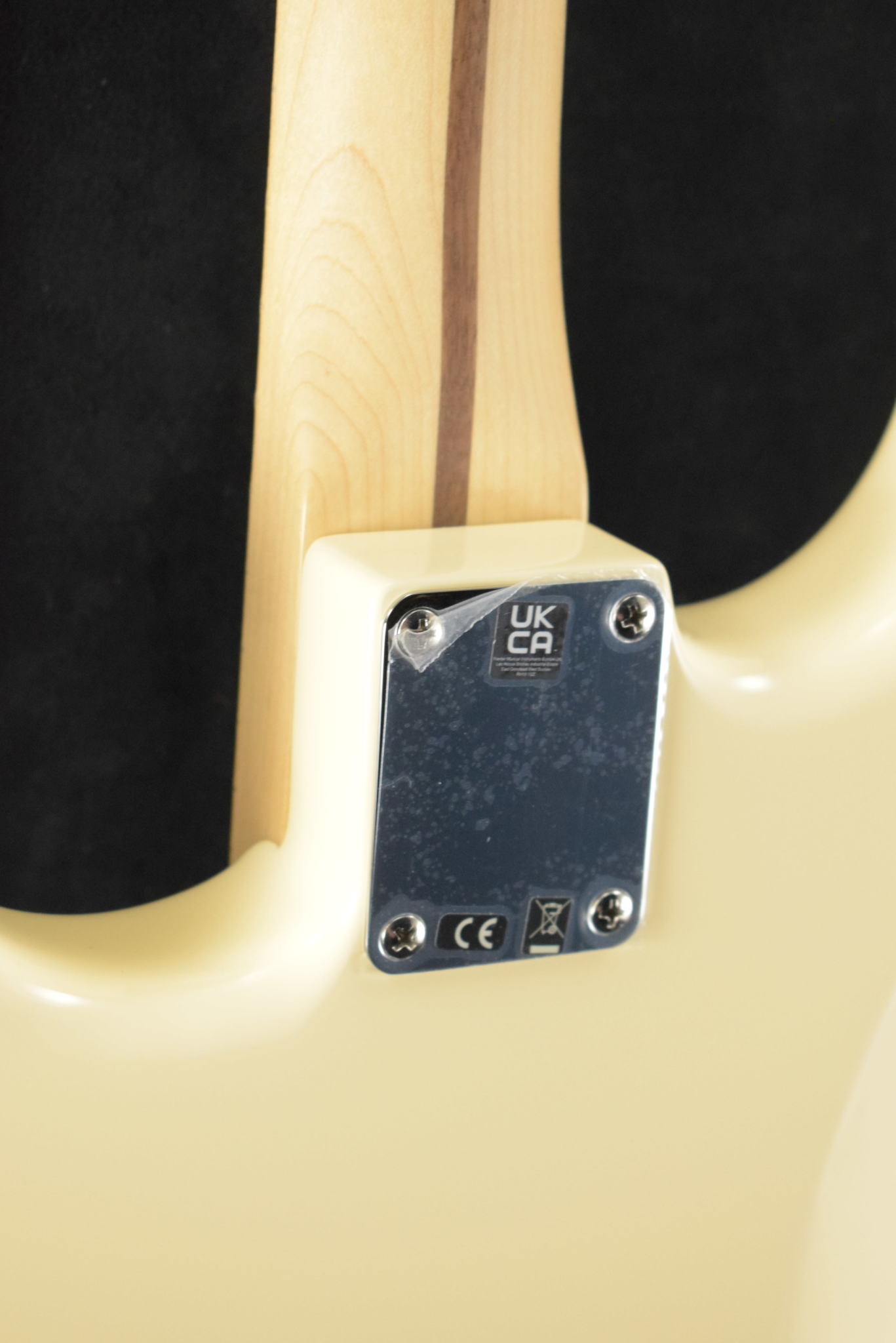

NECK PLATE4-Bolt Vintage-Style
STRAP BUTTONSAmerican Series

Electronics
BRIDGE PICKUPTex-Mex™ "Hot Bridge" Single-Coil Strat®
MIDDLE PICKUPTex-Mex™ Single-Coil Strat®
NECK PICKUPTex-Mex™ Single-Coil Strat®
PICKUP CONFIGURATIONSSS
CONTROLSMaster Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge Pickup)
SWITCHING5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Measurements
DIMENSIONS3.70x14.60x41.70 IN
SHIPPING WEIGHT14.15 LB
FRET SIZEMedium Jumbo
SCALE LENGTH25.5" (64.77 cm)
SHIPPING LENGTH41.70 IN
SHIPPING HEIGHT3.70 IN
SHIPPING WIDTH14.60 IN

Accessories
INCLUDED ACCESSORIESDeluxe Gig Bag
RECOMMENDED CASEDeluxe Stratocaster®/Telecaster® Molded Case, P/N 0996102306 (Not Included)
SADDLE HEIGHT WRENCH.050" Hex (Allen) Wrench

Miscellaneous
COMMODITY CODE9207901000

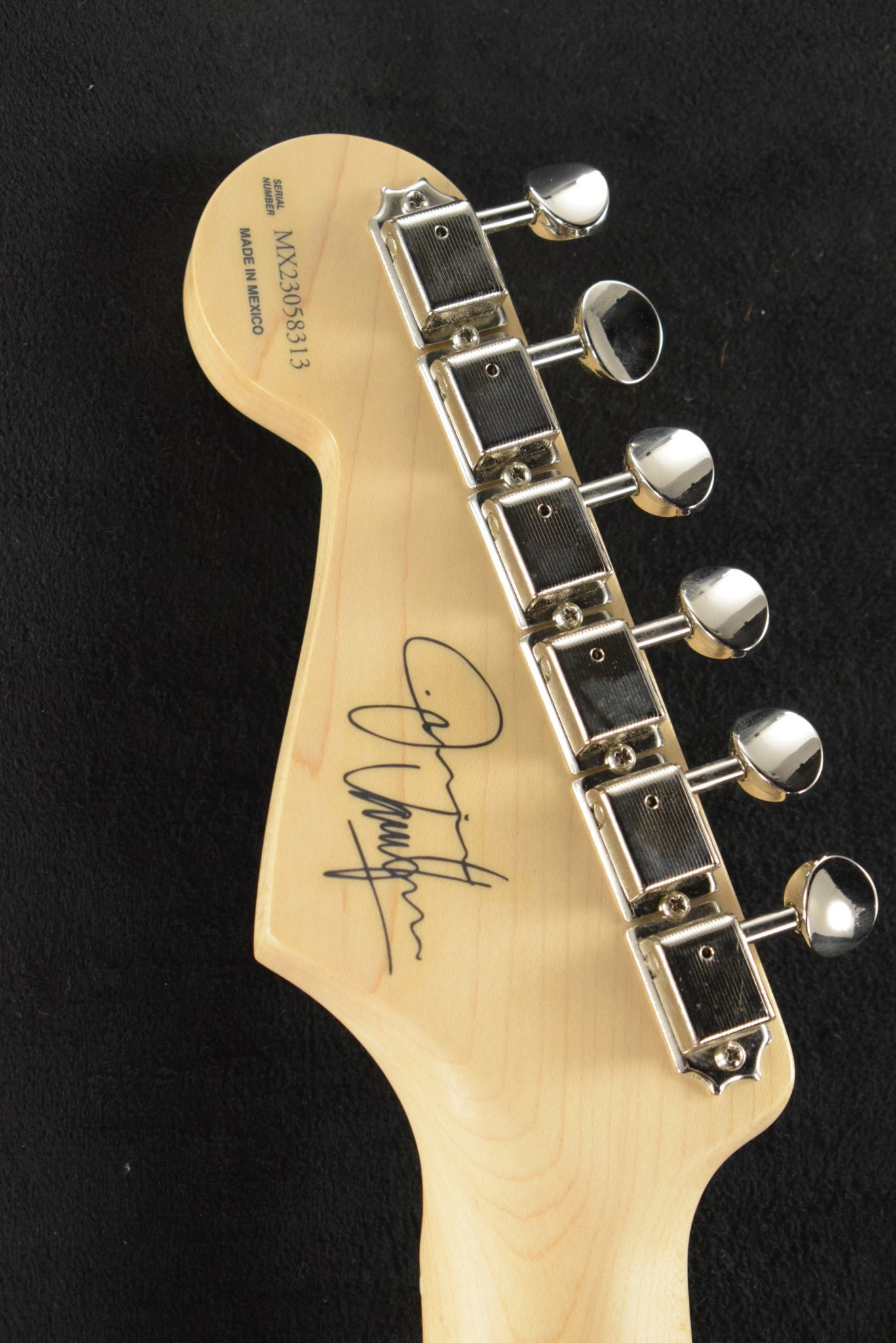

UNIQUE FEATURESSpecial Soft "V" Shape Neck, Fender®;/Schaller®; Straplock Strap Buttons, Middle Pickup is "Wide Open" With No Tone Control, Jimmy Vaughan Signature on Back of Headstock
