ITEM SHOWN:

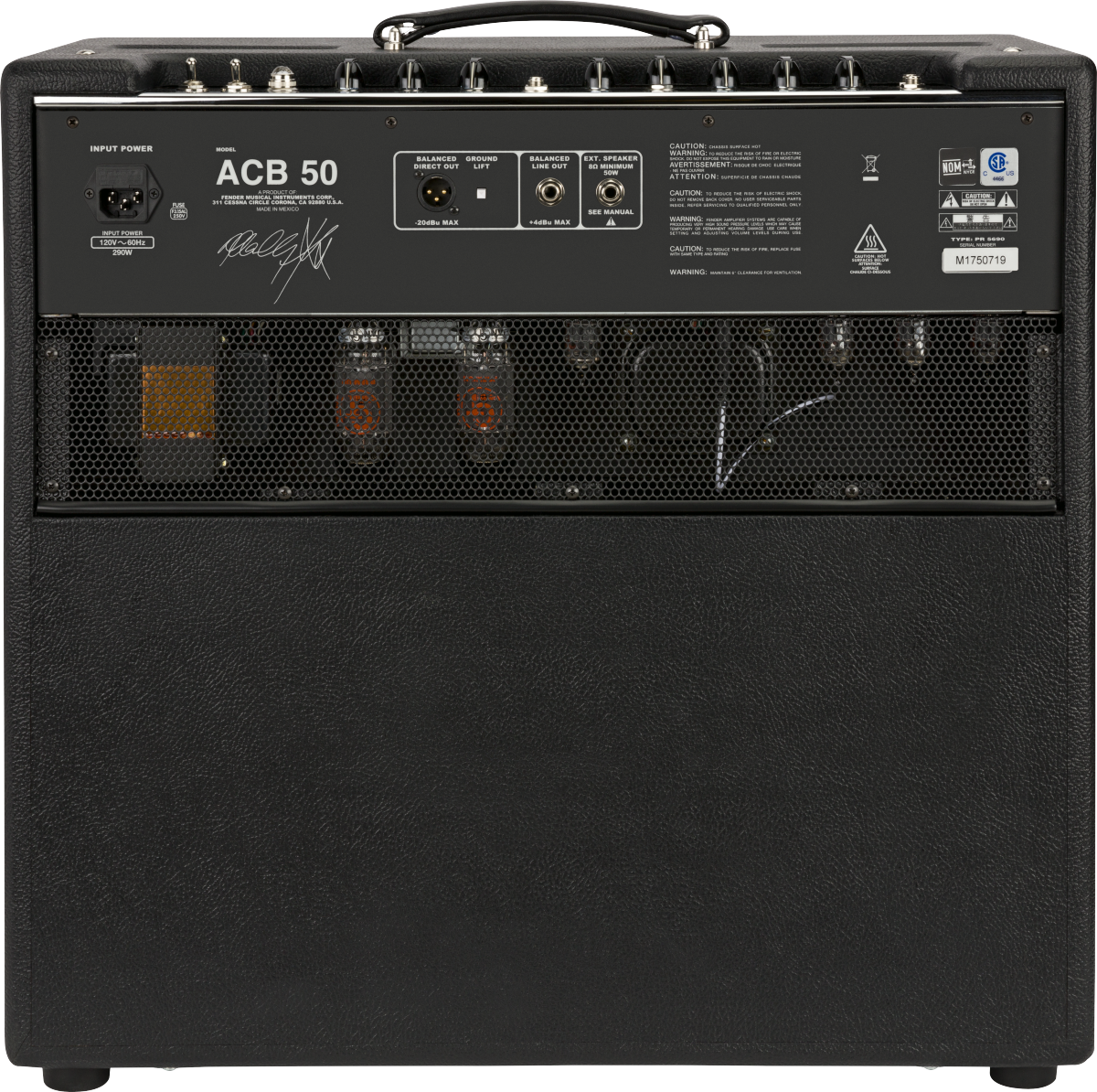

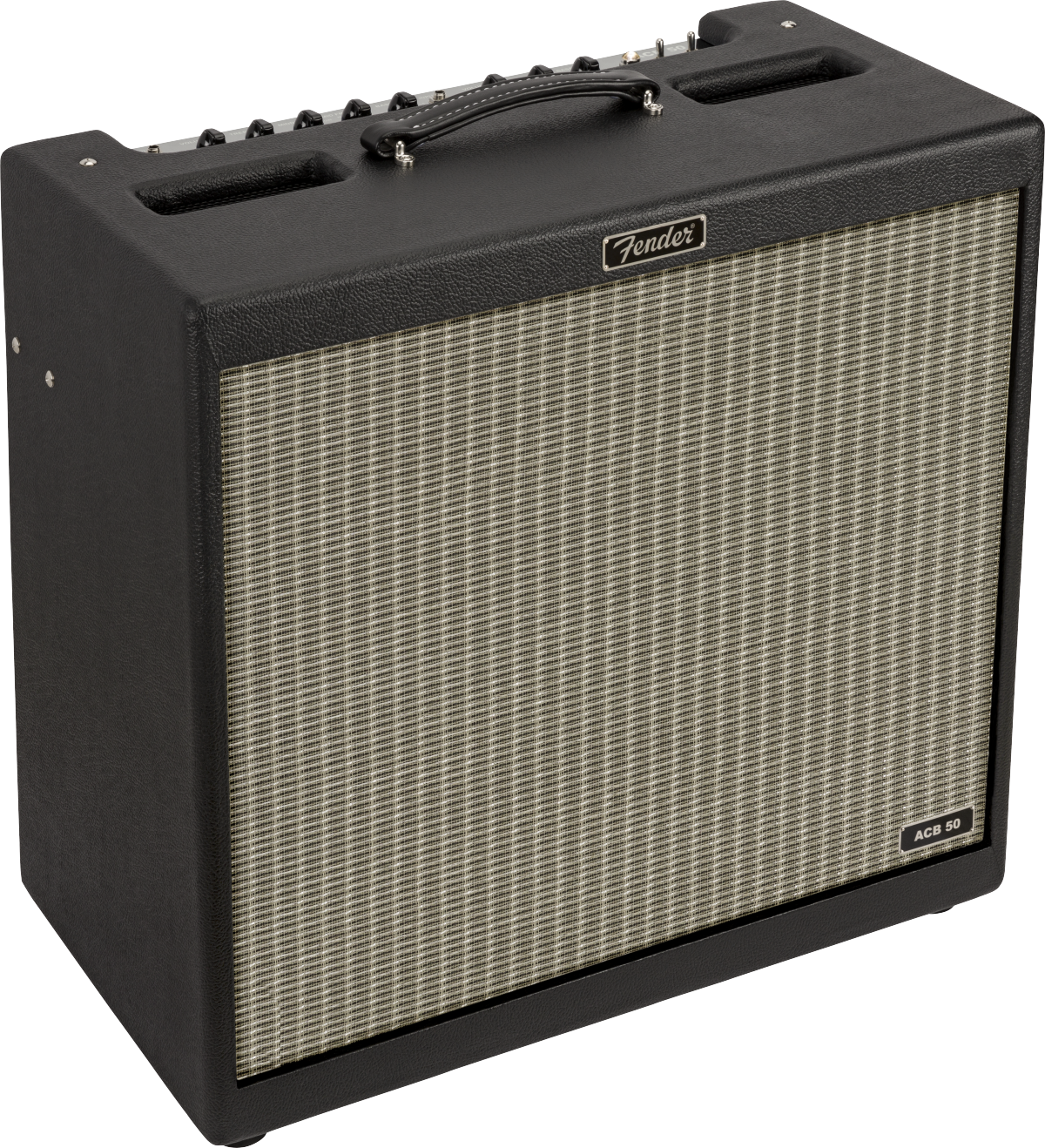

Adam Clayton ACB 50 Bass Amplifier, 120V
MODEL #:
2248500000
UPC #:
885978428526

Inspired by Adam Clayton, the Fender ACB 50 signature bass amplifier offers warm, harmonically rich tube tones that are perfect for the studio, club or arena stage. Featuring two distinctly different channels – a classic Fender sound and a more modern hi-fi, flat EQ tone, the ACB 50 achieves all the sounds you need in any musical situation.

Classic cosmetics, chrome panel and chicken head knobs replicate that classic Fender look that players around the world have come to love. The ACB 50 includes a lightweight Eminence® Neo 15” speaker that helps accentuate its fat, powerful sound and features an XLR line out to send that great tone to your home recording rig or front-of-house.

FEATURES
Designed in collaboration with Adam Clayton of U2
50 watts
Preamp Tubes: (3) 12AX7 and (1) 12AT7
Output Tubes: (2) 6L6
Independent Channels – (2) Classic Fender Sound & Flatter Frequency Sound
15” Eminence neodymium speaker
Transformer-coupled XLR out with ground lift
Chrome Panel and chicken-head knobs
Ported enclosure with lightweight plywood

General
SERIESArtist Signature
COLORBlack
AMPLIFIER TYPETube
COUNTRY OF ORIGINMX

Electronics
CONTROL PANELChannel 1: Volume, Treble, Middle, Mid Frequency, Bass; Channel 2: Volume, Treble, Middle, Bass
INPUTSTwo - 1/4"
LINE OUTTwo - (One XLR and One 1/4")
CHANNELSTwo
VOLTAGE120V
WATTAGE50 Watts at 8 ohms

Hardware
CONTROL KNOBSBlack Chicken-Head Style Pointer
AMPLIFIER COVERINGBlack Textured Vinyl
GRILLE CLOTHAged Silver
HANDLEMolded Plastic Strap with Nickel-Plated Caps
CASTERSOptional: 0994000000, Pop-In Casters (Installation Required)
REAR CONTROL PANELGround Lift Switch
sku-image

Speakers
SPEAKERSOne - 15" Fender® Special Design Eminence® Neodymium
TOTAL IMPEDANCE8 ohms

Tubes
POWER TUBES2 x 6L6
PREAMP TUBES3 x 12AX7, 1 x 12AT7

Measurements
DIMENSIONS20.00x30.00x30.00 IN
SHIPPING WEIGHT72.00 LB
PRODUCT DEPTH14" (35.5 cm)
PRODUCT HEIGHT23" (58.42 cm)
PRODUCT WIDTH24.25" (61.5 cm)
POWER TUBES2 x 6L6
SHIPPING LENGTH30.00 IN
SHIPPING HEIGHT20.00 IN
SHIPPING WIDTH30.00 IN

Accessories
FOOTSWITCHNA

Miscellaneous
POWER CABLEIEC
