ITEM SHOWN:

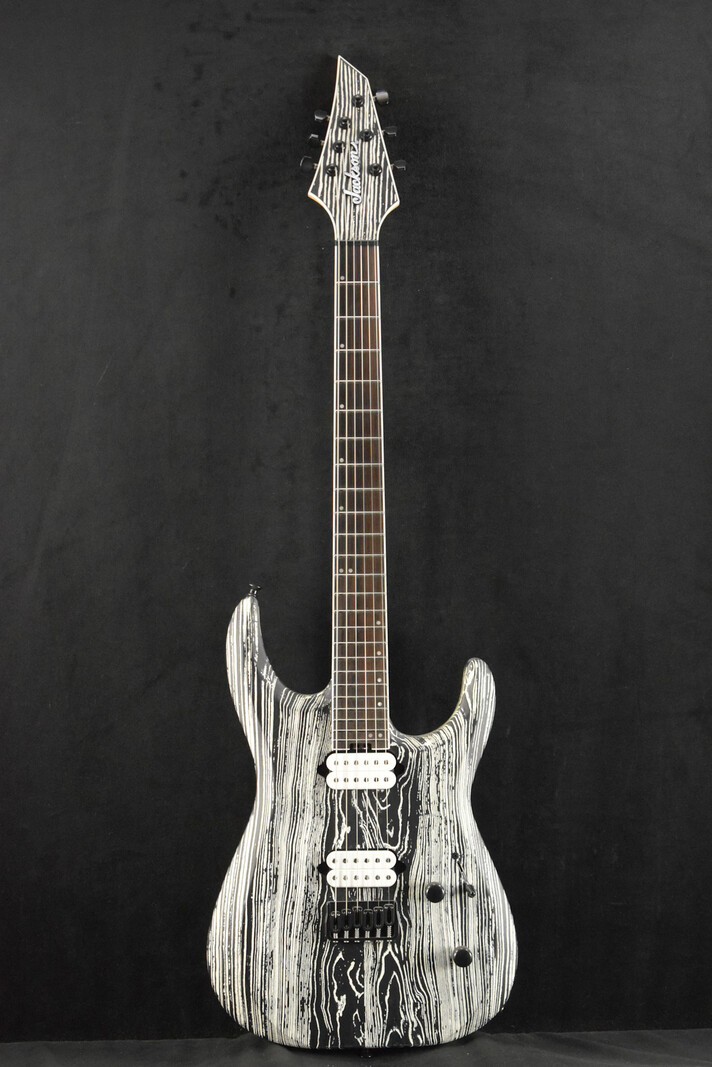

Pro Series Dinky™ DK Modern Ash HT6, Ebony Fingerboard, Baked White
MODEL #:
2910002576
UPC #:
885978538638
CASE/GIG BAG:
Not included

With premium features catering to highly-technical playing, multi-dimensional tone and ergonomic design, the brand-new Jackson Pro Series Dinky™ DK Modern Ash HT6 model provides the ultimate high-performance experience for today’s modern players.

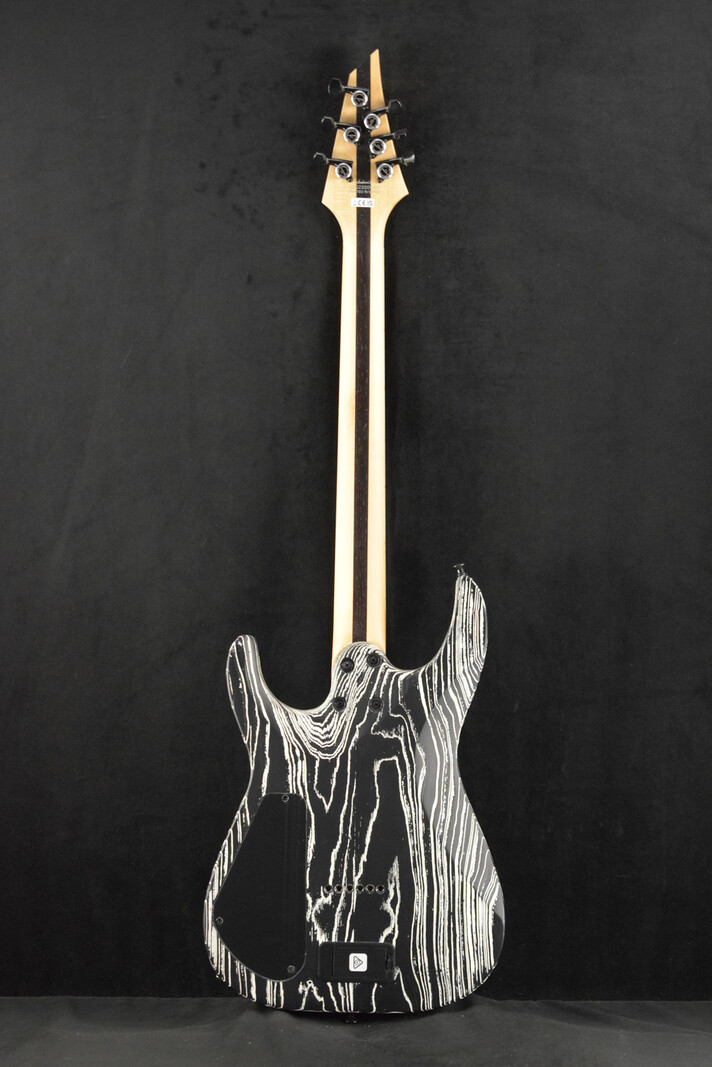

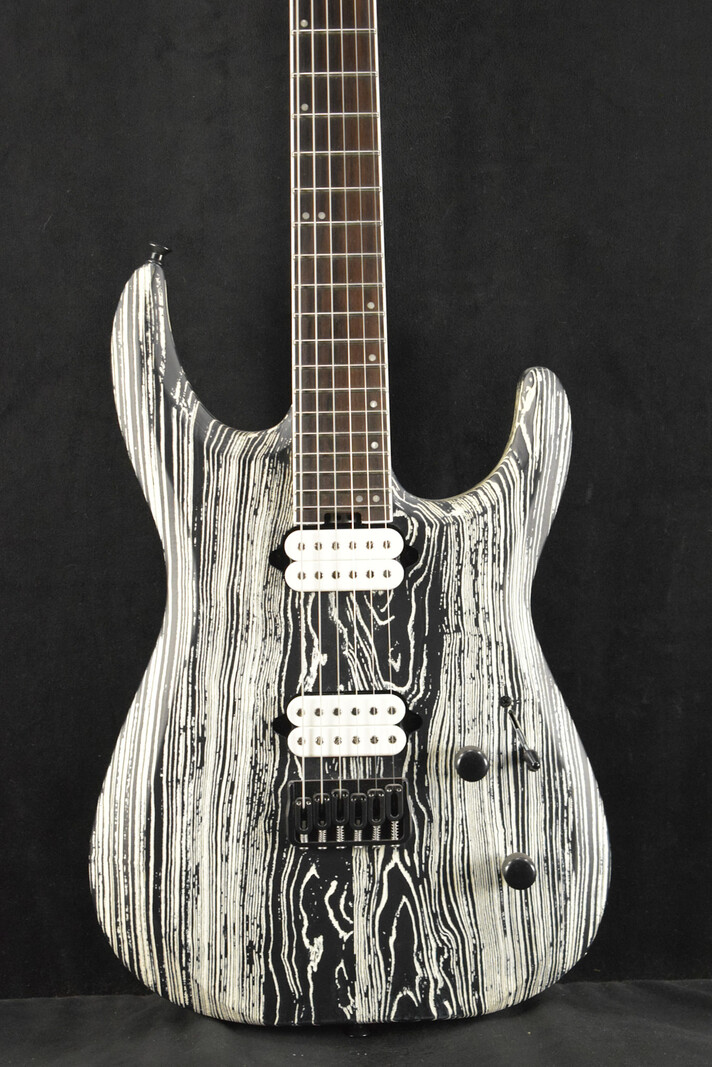

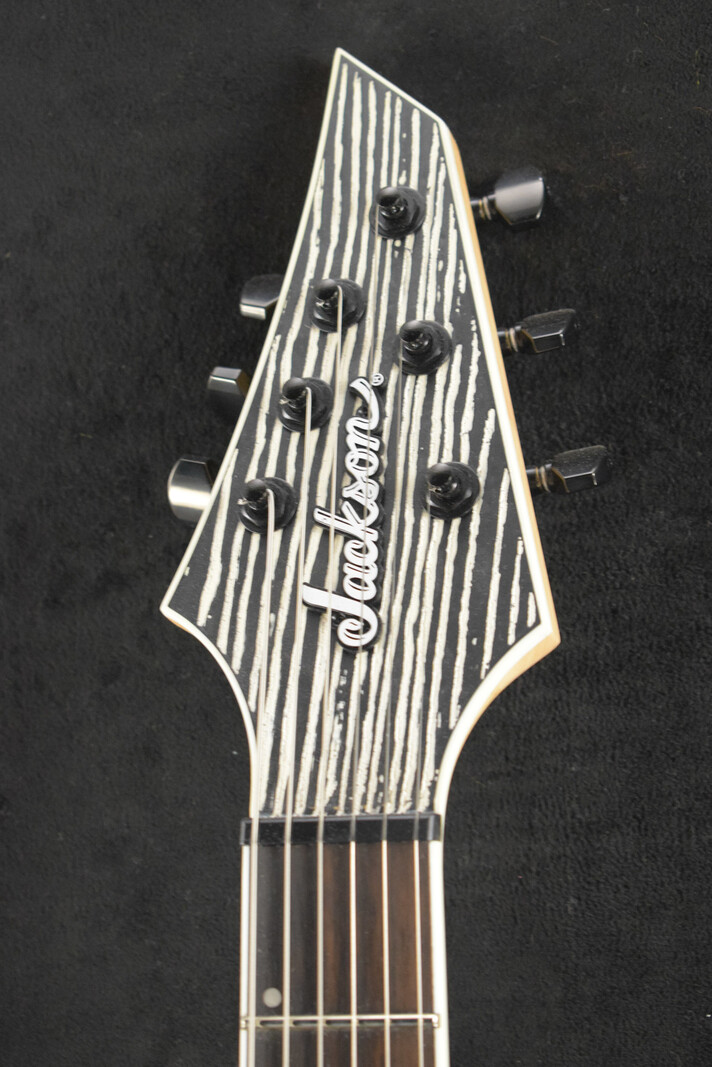

This modernized guitar also boasts unparalleled style with a sandblasted surface that highlights the ash wood grain and unique Baked Red or Baked White finish, complete with a reverse 3x3 AT-1 color matched headstock with white Jackson badge logo and black hardware.

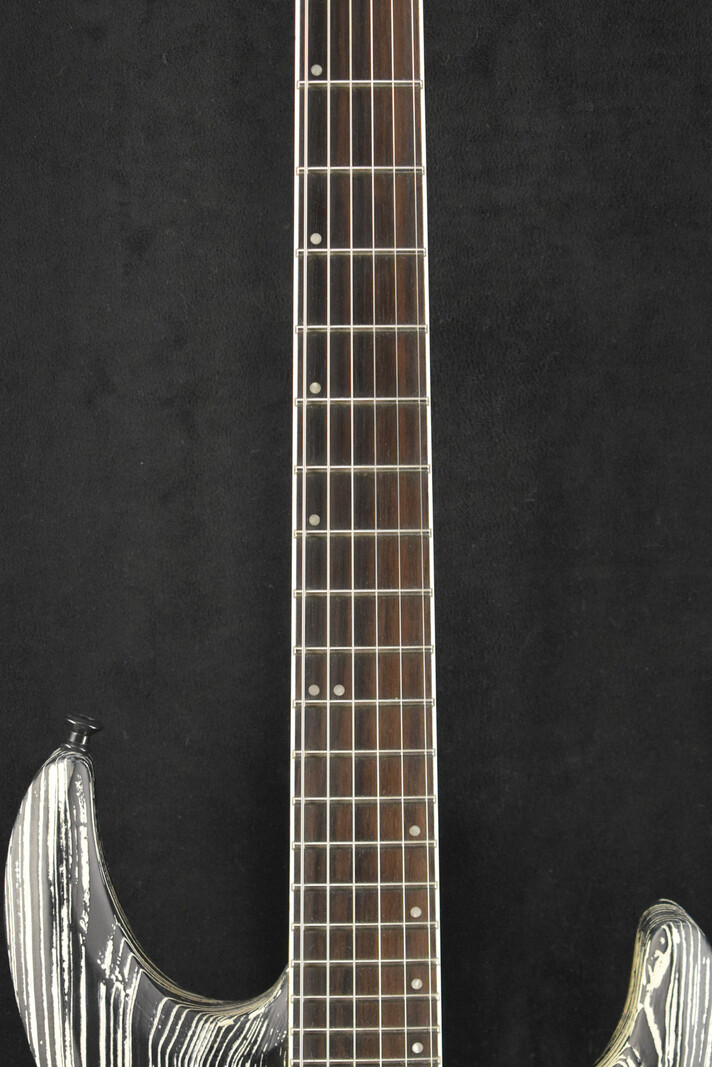

The ash Dinky body is paired with a sturdy graphite-reinforced bolt-on three-piece maple/wenge/maple neck, featuring a satin finish on the back for greater playing comfort and a heel-mount truss rod adjustment wheel for painless neck relief tweaks. Designed for fast and intricate playing, the 12"-16" compound radius bound ebony fingerboard hosts 24 jumbo frets, offset pearloid dot inlays and Graph Tech® TUSQ® XL nut. Luminlay® side dots will guide your way along the fretboard even on the darkest of stages.

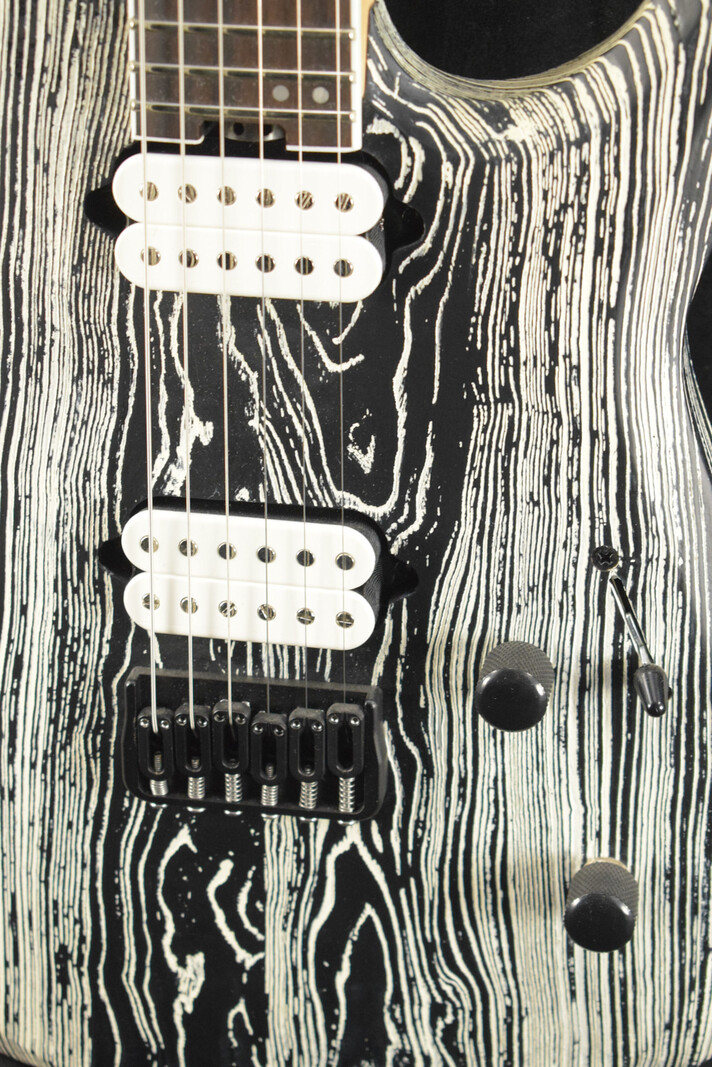

Active multi-voiced Fishman® Fluence® Open Core PRF-COC bridge and neck humbucking pickups give this powerful instrument its dynamic tone — capable of over-wound hot-rodded crunch or vintage snap. With the five-way blade in pickup positions one (full bridge) or five (full neck), you can leverage the tone control with push/pull activation to switch from voice one to voice two. Pickups positions two, three and four all feature voice 3’s single-coil tone.

This versatile model also features a single volume control, Gotoh® locking tuners and a Hipshot® 6 fixed bridge for improved intonation and enhanced sustain.

Take your playing to the next level with the Pro DK Modern Ash HT6.

General
SERIESPro
ORIENTATIONRight-Hand
COLORBaked White
COUNTRY OF ORIGINKR

Neck

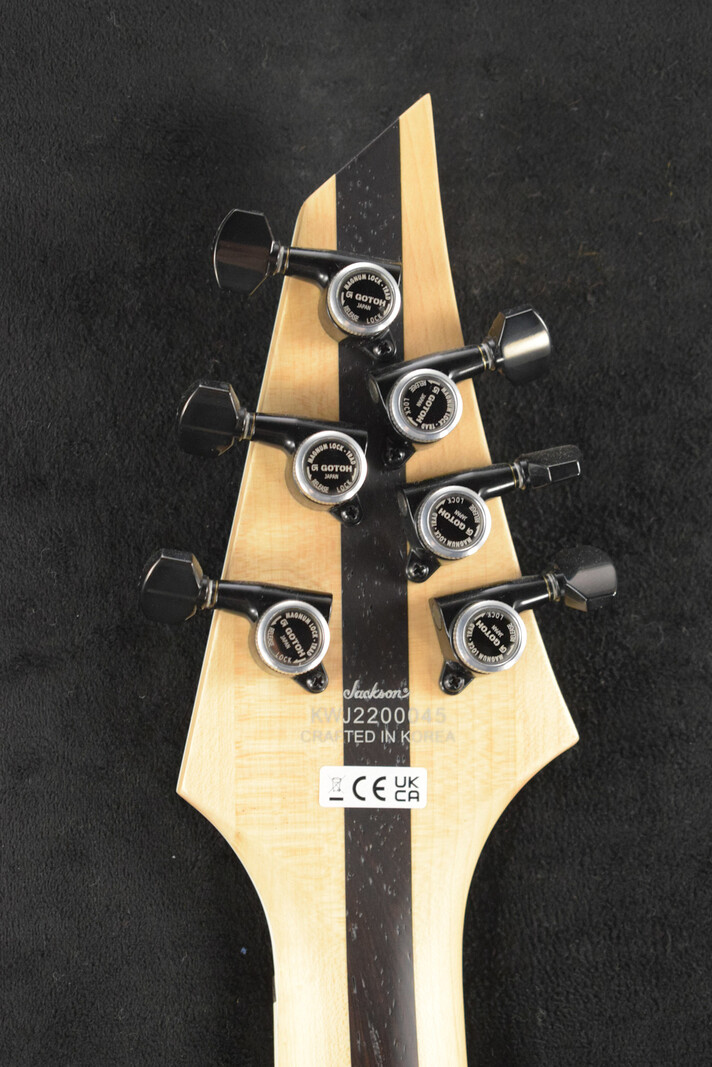

HEADSTOCKReverse Jackson® AT-1 3x3 (3 Over/3 Under)
HEADSTOCK BINDINGWhite
NECK MATERIAL3-Piece Maple/Wenge/Maple
NECK FINISHSatin

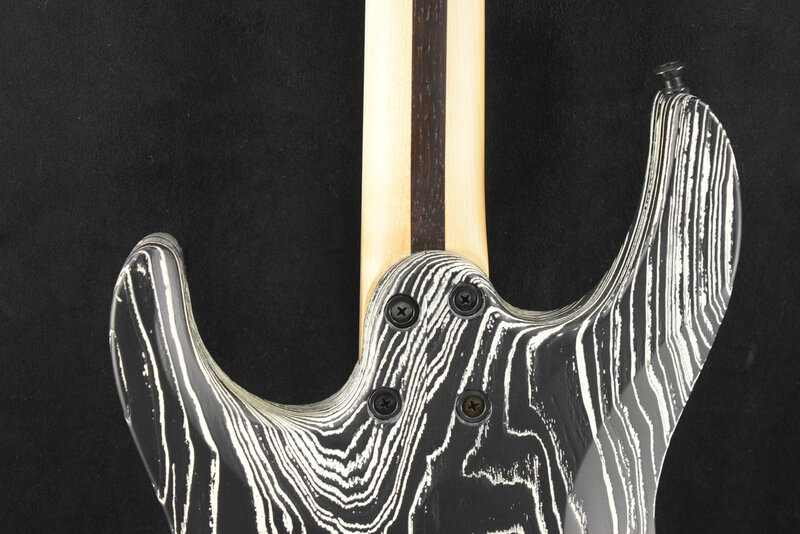

NECK CONSTRUCTIONBolt-On with Graphite Reinforcement
FINGERBOARD RADIUS12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIALEbony
POSITION INLAYSOffset Pearloid Dot
SIDE DOTSLuminlay®
NUMBER OF FRETS24
TRUSS RODDual-Action with Wheel
TRUSS ROD NUTHeel-Mount Truss Rod Adjustment Wheel
STRING NUTGraph Tech® TUSQ® XL
NUT WIDTH1.6875" (42.86 mm)
NUT MATERIALGraph Tech® TUSQ® XL

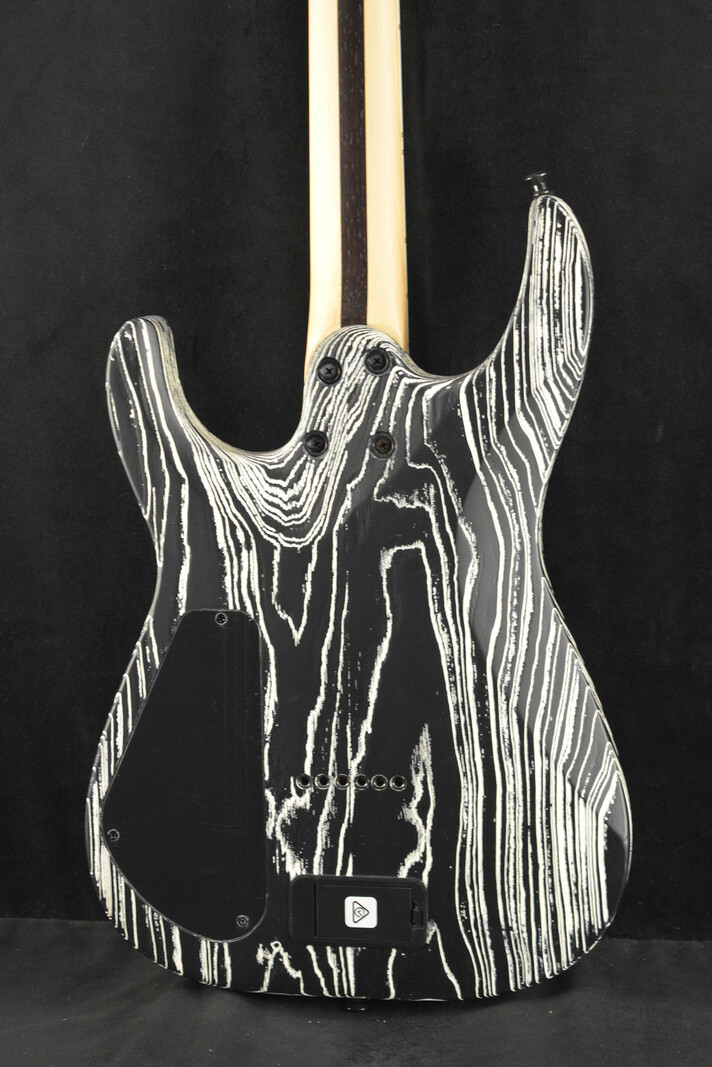

Body
BODYAsh
BODY FINISHSatin
BODY SHAPEDinky™
BODY MATERIALAsh
sku-image

Hardware
BRIDGEHipshot® 6 - Fixed .175
PICKGUARDNone
PICKUP COVERSWhite
CONTROL KNOBSDome-Style
SWITCH TIPBlack
HARDWARE FINISHBlack
TUNING MACHINESGotoh® Locking
STRINGSNickel Plated Steel (.009-.042 Gauges)
NECK PLATENone
STRAP BUTTONSDunlop® Dual-Locking

Electronics
BRIDGE PICKUPFishman® Fluence® Open Core PRF-COC
NECK PICKUPFishman® Fluence® Open Core PRF-COC
PICKUP CONFIGURATIONHH
CONTROLSVolume, Tone (with Push/Pull Activation to Switch Between Voice 1 and 2 in Pos 1 and 5)
SWITCHING5-Position Blade: Pos 1. Bridge Full Humbucker, Pos 2. Bridge Inner Coil, Pos 3. Both Inner Coils, Pos 4. Neck Inner Coil Pos 5. Neck Full Humbucker (Voice 3 Single-Coil Tone in Pos 2, 3 and 4)
SPECIAL ELECTRONICSActive Electronics

Miscellaneous
COMMODITY CODE9207901000

Accessories
SADDLE HEIGHT WRENCHYes

Measurements
DIMENSIONS4.00x19.00x44.50 IN
SHIPPING WEIGHT12.25 LB
FRET SIZEJumbo
SCALE LENGTH25.5" (64.77 cm)
SHIPPING LENGTH44.50 IN
SHIPPING HEIGHT4.00 IN
SHIPPING WIDTH19.00 IN
