ITEM SHOWN:

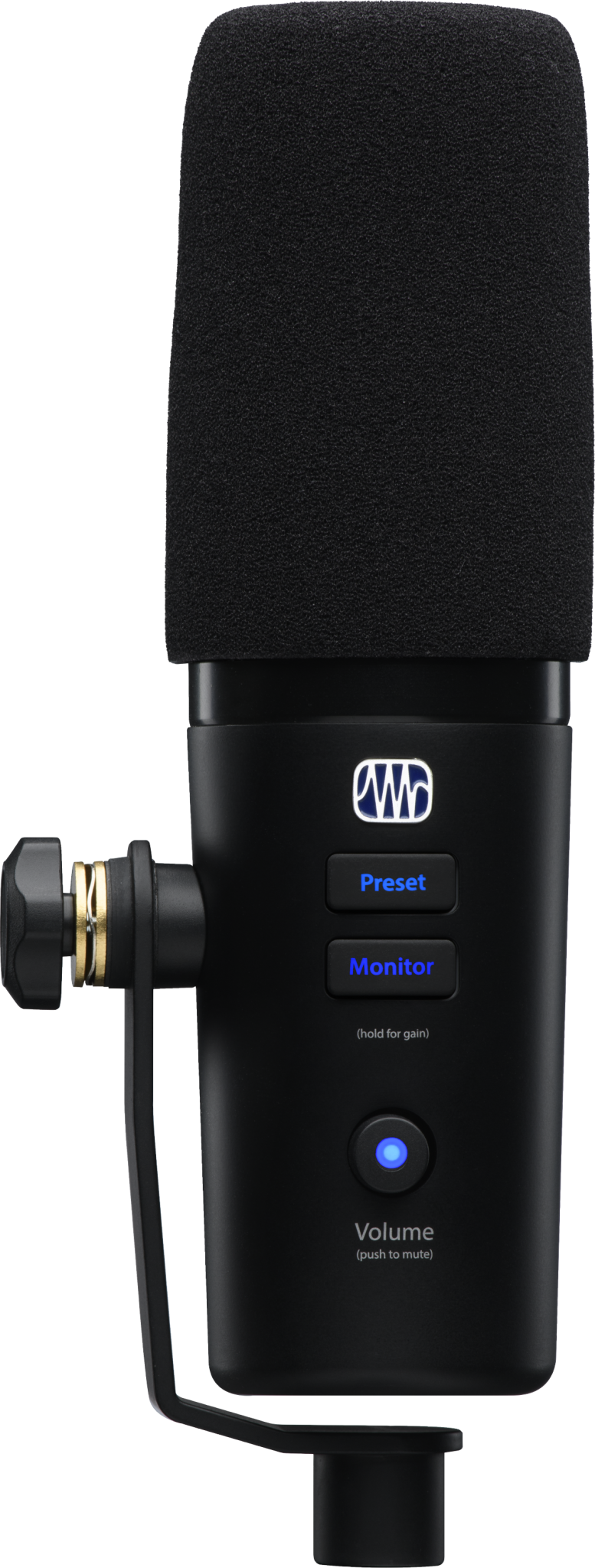

PreSonus® Revelator Dynamic, Black
MODEL #:
2777300202
UPC #:
673454010002

The Revelator Dynamic USB microphone takes the clarity and warmth of our fan-favorite PD-70 microphone and adds easy-to-use, customizable presets to polish your voice further. Need to add backing tracks, Zoom calls, or gameplay audio? Revelator Dynamic has you covered with a built-in mixer, simplifying blending your voice with audio from other applications as well as creating the perfect monitor, stream, or podcast mix.

The custom-built microphone capsule in the Revelator Dynamic is built to capture your voice cleanly and clearly while eliminating handling noise and breathiness that can get between you and your recording. Thanks to superior off-axis rejection, you can set up your home studio in just about any space—and unwanted reverberance, electrical hum, and the random car driving by will be left behind, leaving only the pristine, natural sound of your voice.

Eight professionally crafted presets to make your voice sound polished right from the start. Like what you hear? Revelator Dynamic gives you the option to record your vocals fully processed, making for less work in post-production.

Revelator Dynamic makes it easy to hear your performance loud and clear. The simple onboard Monitor control makes creating a great monitor mix fast and uncomplicated. Best of all, you can monitor through the Revelator Dynamic’s amazing onboard processing so your vocals will sound polished, and you’ll get the perfect take that much easier.

FEATURES
Professional bus-powered USB-C®-compatible dynamic microphone for vocal recording, podcasting, streaming, vlogging, gaming, and more
Custom-designed dynamic microphone capsule provides vocal clarity and superior off-axis rejection
Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go.
Integrated mixer with two dedicated loopback audio channels to add backing tracks, Skype calls, gameplay audio, and more!
Effects processing lets you polish your sound with reverb, compression, EQ, and fantastic Voice FX — all built into Revelator Dynamic
Revelator Dynamic is powered by your connected USB-C device so no need for an additional power supply – works great with both Apple and Android devices.

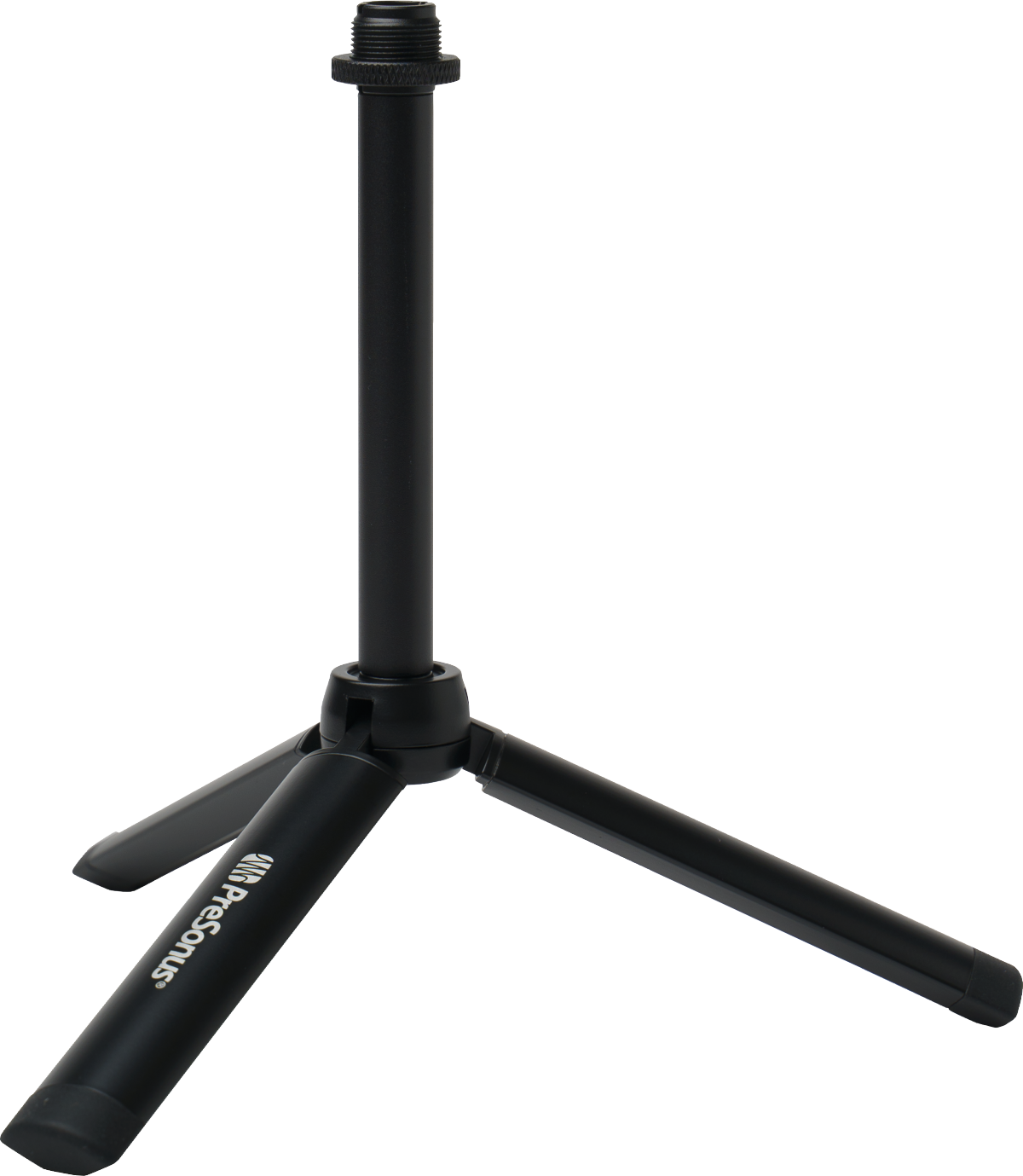

PTS-1 extendable desktop mic stand included
Headphone output with volume control and zero-latency monitoring
Studio-quality sound: 96 kHz / 24-bit operation for pristine audio recording
Recording Software included: Complete recording solution featuring Studio One Artist DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments.
​macOS® and Windows® compatible
iOS® and iPadOS® compatible (may require a Camera Connection Kit)
Chromebook compatible

General
SERIESRevelator™
COLORBlack
COUNTRY OF ORIGINCN

Electronics
HEADPHONE JACK1/8" Stereo
EFFECTSPreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter. Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder. Reverb
CONNECTIVITYUSB-C® Compatible USB 2.0 Connection

Performance
DIGITAL AUDIO BIT DEPTH24-bit
MAXIMUM SPL135 dB <3% THD
MICROPHONE FREQUENCY RESPONSE20 Hz to 20 kHz
MICROPHONE SENSITIVITY1.6 mV/Pa
POLAR PATERNCardioid
sku-image

Outputs
HEADPHONE OUTPUTS CONNECTION TYPE
HEADPHONE OUTPUTS DYNAMIC RANGE77.5 dB
HEADPHONE OUTPUTS FREQUENCY RESPONSE20 Hz to 20 kHz
HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE16Ω
HEADPHONE OUTPUTS MAXIMUM OUTPUT22.6 mW (16Ω)
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION0.01%

Hardware
AUDIO CONTROLSHardware: Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select Software: Mic Gain, Pattern Select, Monitor Mix, Preset Management
MICROPHONE TYPESMono Dynamic

Measurements
DIMENSIONS5.20x6.20x11.00 IN
SHIPPING WEIGHT2.25 LB
PRODUCT DEPTH3.25" (8.2 cm)
PRODUCT HEIGHT8.75" (22.3 cm)
PRODUCT WIDTH5.25" (13.2 cm)
SHIPPING LENGTH11.00 IN
SHIPPING HEIGHT5.20 IN
SHIPPING WIDTH6.20 IN

Accessories
FOOTSWITCHNA

Miscellaneous
COMMODITY CODE8518100090
POWER CABLEUSB-C® Bus-Powered
SUPPORTED SAMPLE RATES44.1, 48, 88.2, and 96 kHz (​Note: 44.1 and 48 kHz only on macOS while in Multi Mode)
