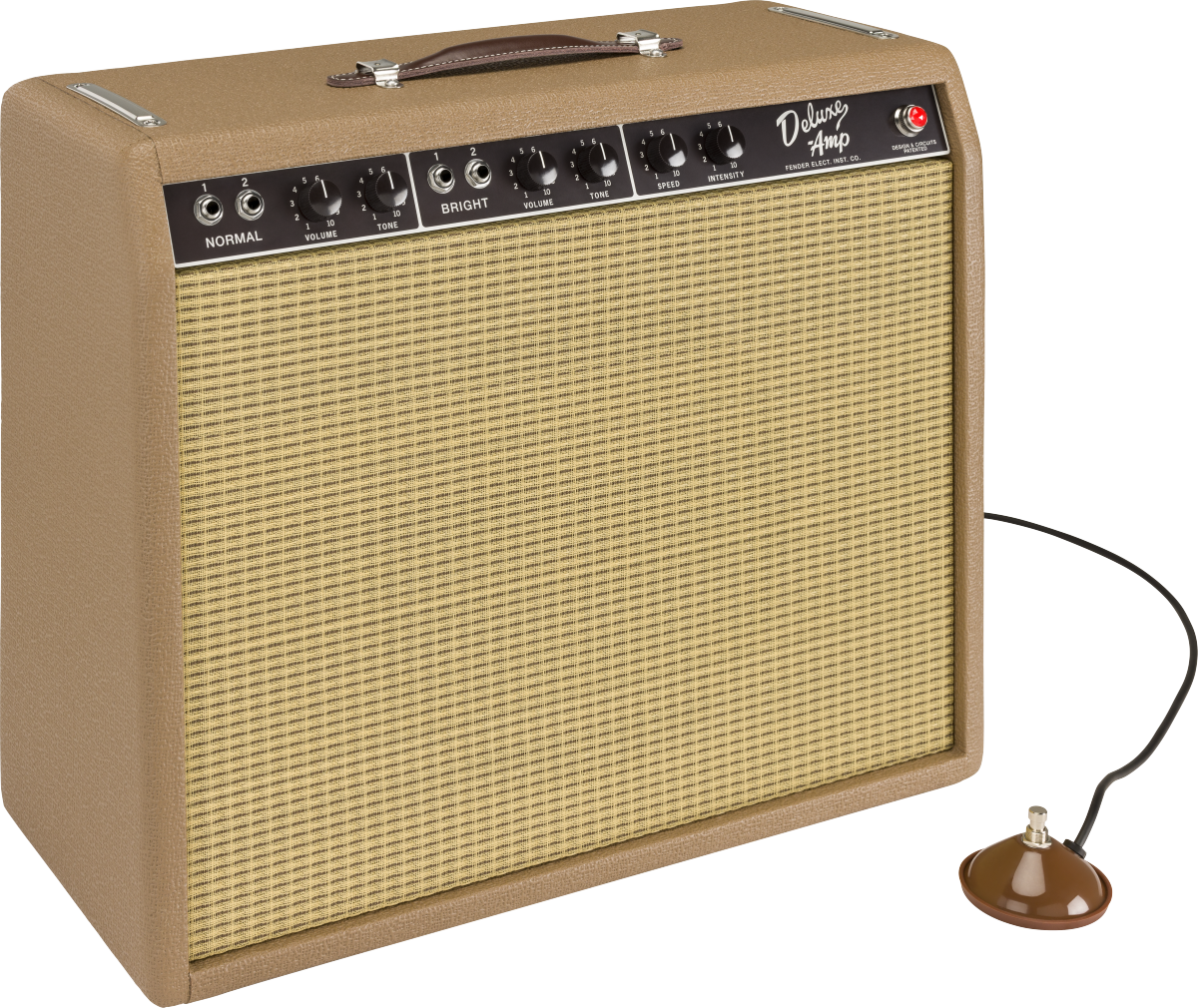

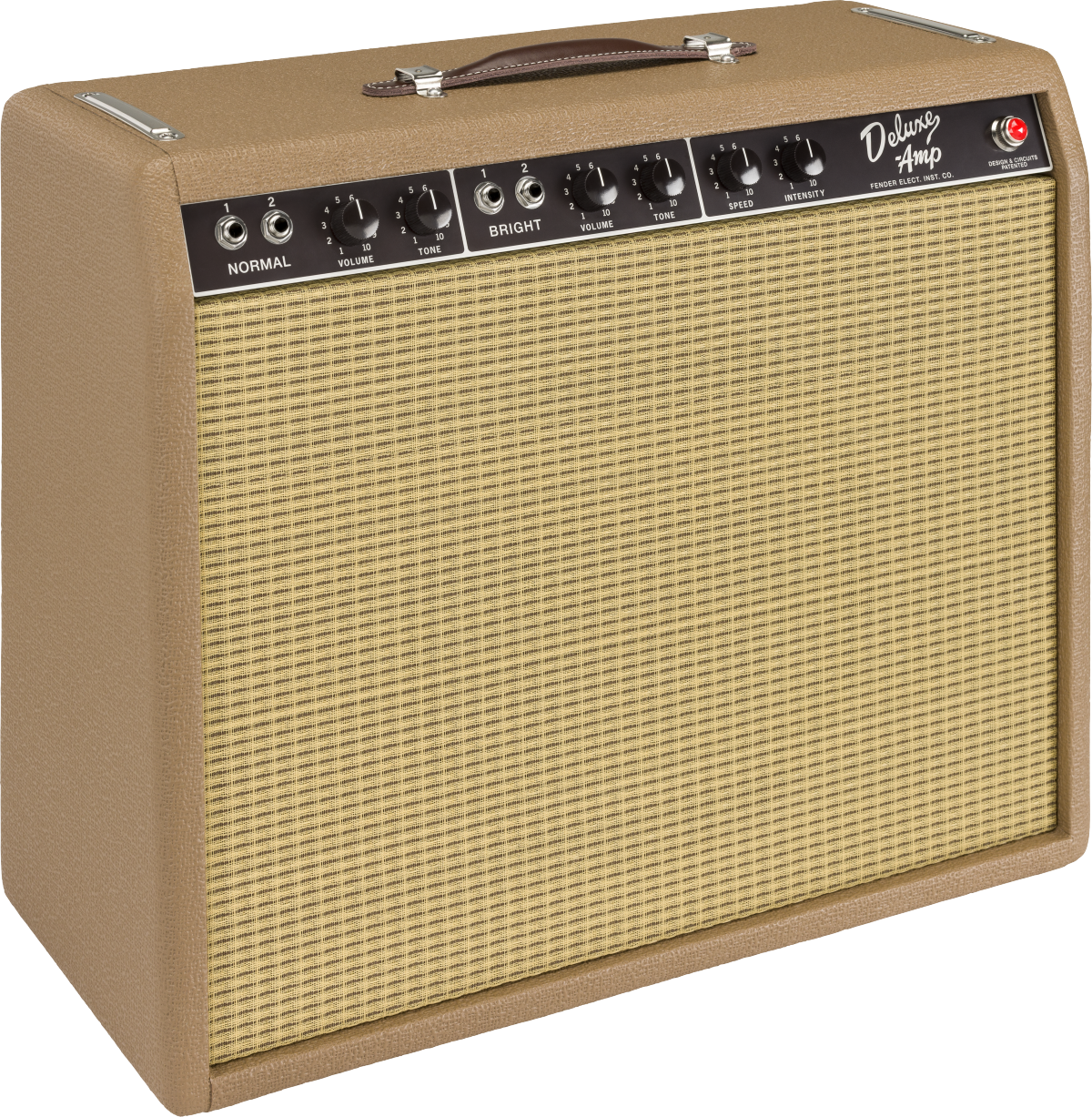

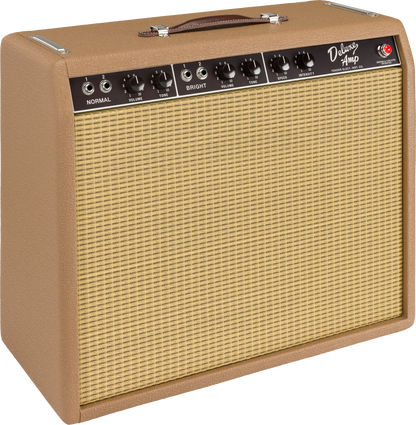

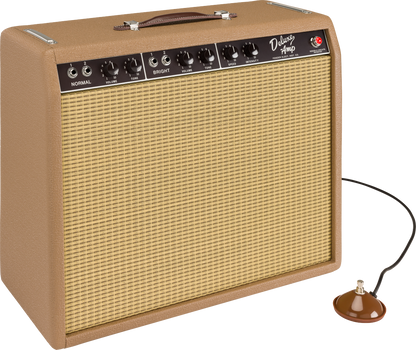

Fender '62 Deluxe Amp

Item shown:
'62 Deluxe Amp, 120V
Model #:
2174100000
UPC #:
885978795765

Known among players as hidden treasures from the early ’60s, Fender “brown panel” amplifiers are prized for bridging the gap between the raw sound of its ’50s-era tweed-covered amps and the sparkling clean tones of its mid-’60s “black panel” amps, with a distinctive sound all their own.

The ’62 Deluxe Amp replicates the sound of those originals with its incredibly warm, woody clean tones and mean overdrive when cranked. Combining that with tube-bias tremolo makes it a true desert-island amplifier. Using two 6V6 output tubes to push 20 watts through a custom-designed Celestion® 12” speaker, the ‘62 Deluxe is the perfect amp for home recording and smaller gigs and an ideal amp for Fender aficionados and collectors everywhere.
Features
1962 Deluxe 6G3 circuit with all-tube design
Two 6V6 output tubes, three 12AX7 preamp tubes, one GZ34 rectifier tube
Single 12” Celestion® Custom Design speaker
Lush tube-bias tremolo
Fender ’60s brown Nubtex cabinet covering with wheat grille cloth and brown leather handle
Vintage-style brown single-button footswitch
Fitted brown amp cover

General
Series
American Vintage
Color
Brown and Wheat
Amplifier Type
Tube
Country Of Origin
USA

Electronics

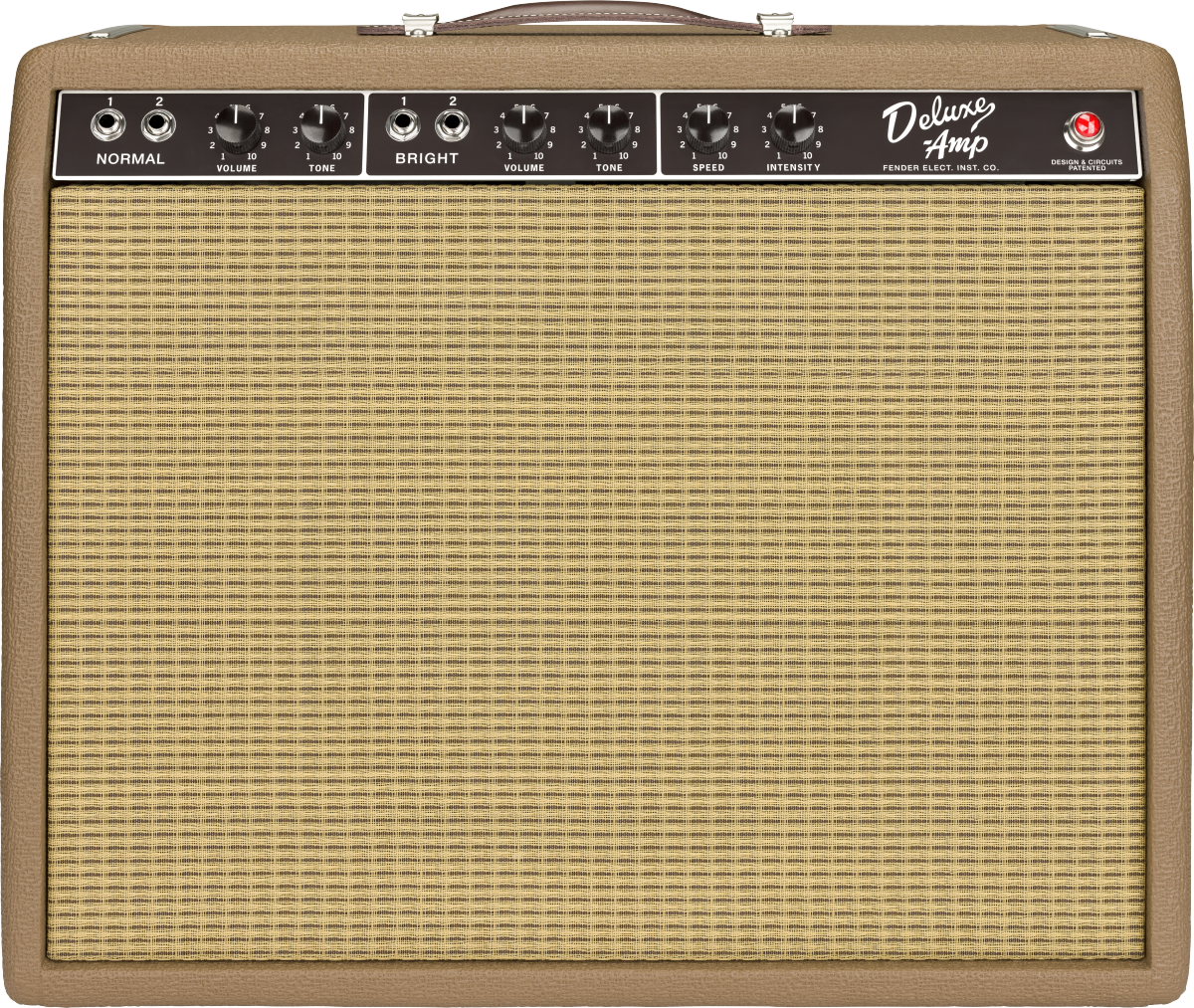

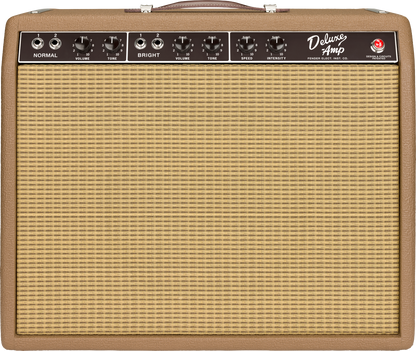

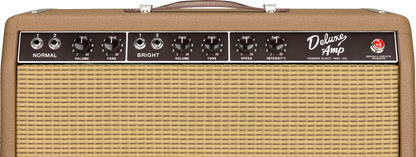

Control Panel

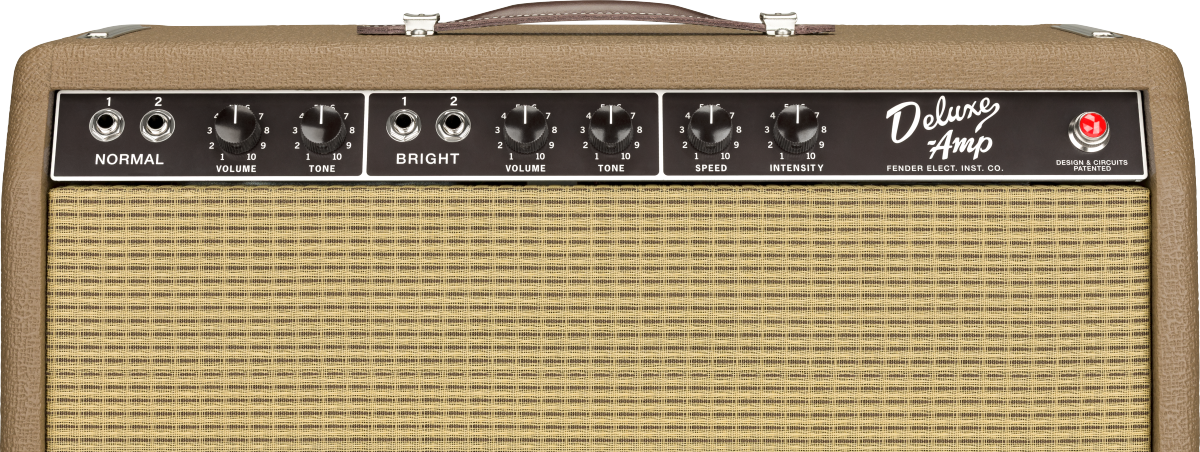

Normal Channel: Volume, Tone; Bright Channel: Volume, Tone; Vibrato: Speed, Intensity
Inputs
Four - (1/4", Two Bright and Two Normal)
Channels
Two - (Normal and Bright)
Effects
Tube-Bias Tremolo
Connection Type
1/4"
Voltage
120V
Wattage
20 Watts

Hardware
Control Knobs
Brown “Cupcake” Knobs
Amplifier Covering
Fender ’60s Nubtex
Cabinet Material
Solid Pine
Grille Cloth
Wheat
Handle
Brown Leather Handle
Amplifier Jewel
Red LED Jewel
Speaker Jack
Two 1/4" Parallel (Internal and External)
Front Panel
Brown

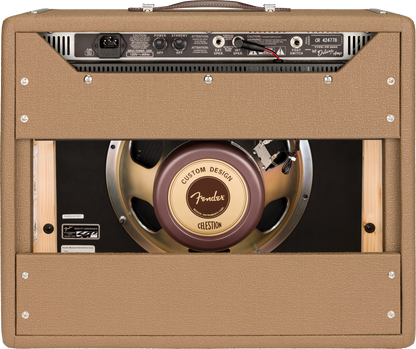

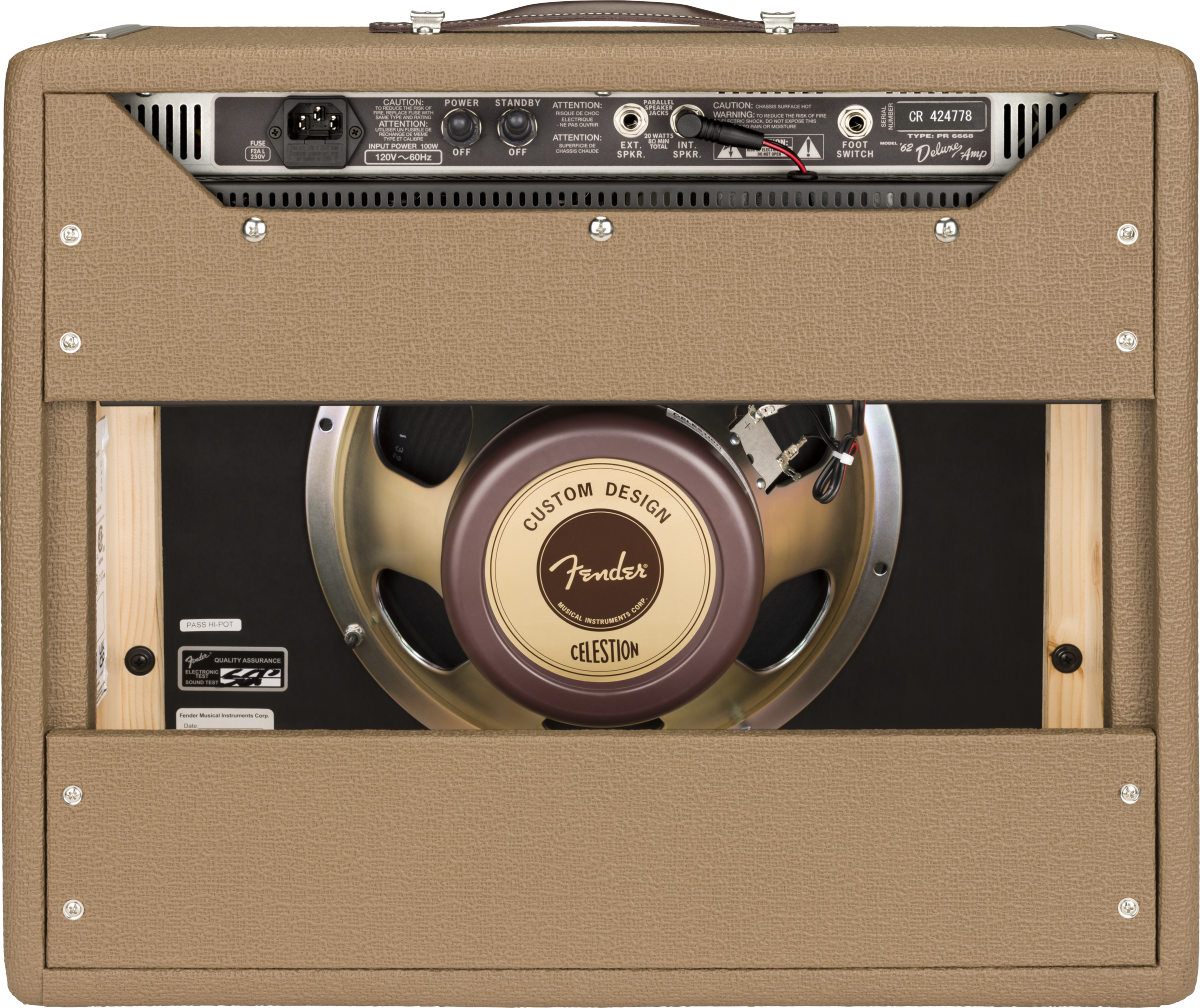

Rear Control Panel
Power, Standby
sku-image

Speakers
Speakers
One - 12" Celestion® Custom Design
Total Impedance
8 ohms

Tubes
Power Tubes
2 x 6V6
Preamp Tubes
3 x 12AX7
Rectifier
Tube (1 x 5AR4)

Measurements
Shipping Dimensions
15.50x24.50x29.50 IN
Shipping Weight
61.60 LB
Shipping Length
29.50 IN
Shipping Height
15.50 IN
Shipping Width
24.50 IN
Product Depth
9.5" (24.13 cm)

Accessories
Included Accessories
Vintage-style brown single-button footswitch, Fitted brown amp cover
Footswitch
1-Button Footswitch Included

Miscellaneous
Commodity Code
8518.40.2000
Unique Features
1962 Deluxe 6G3 circuit with all-tube design
Power Cable
IEC
