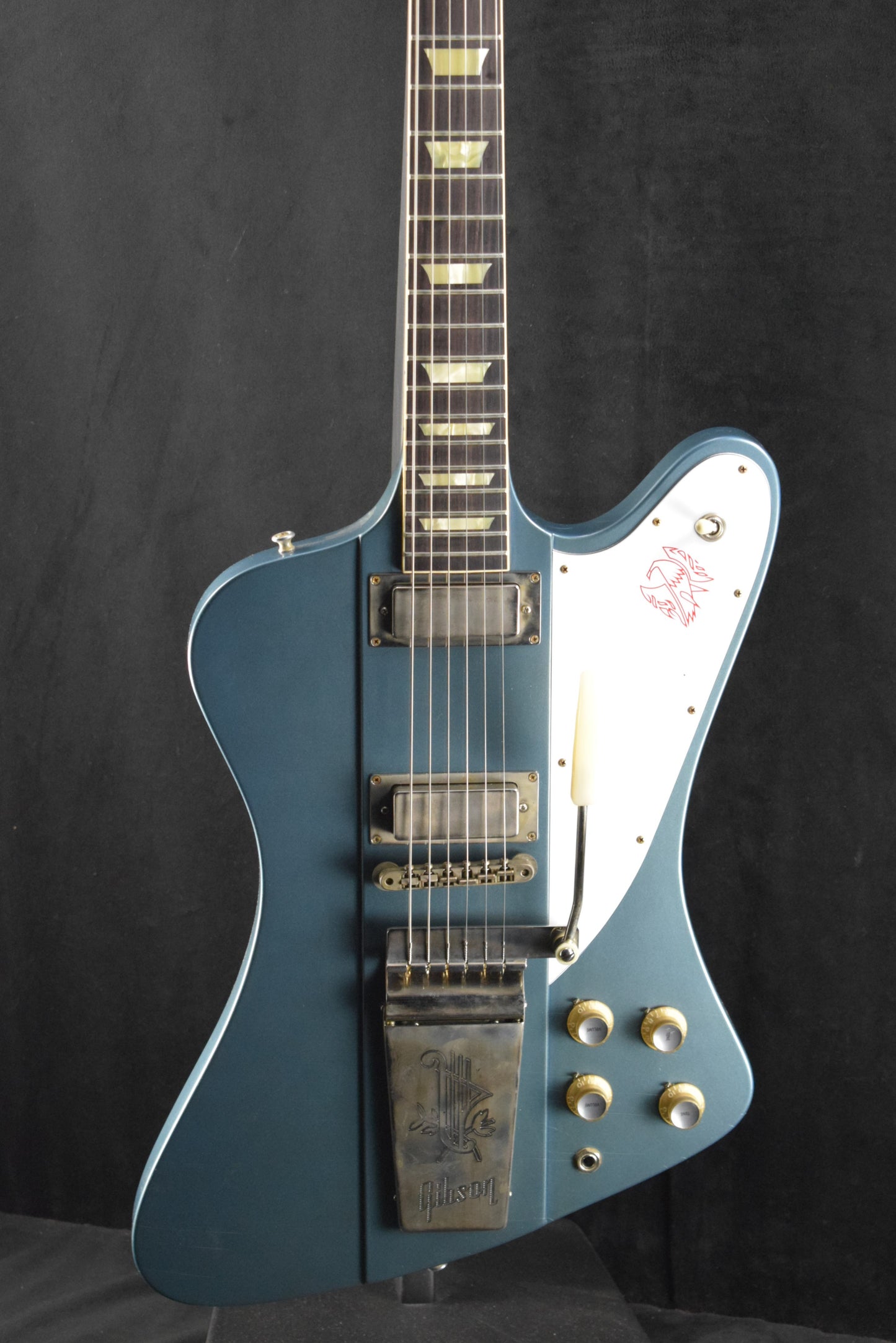

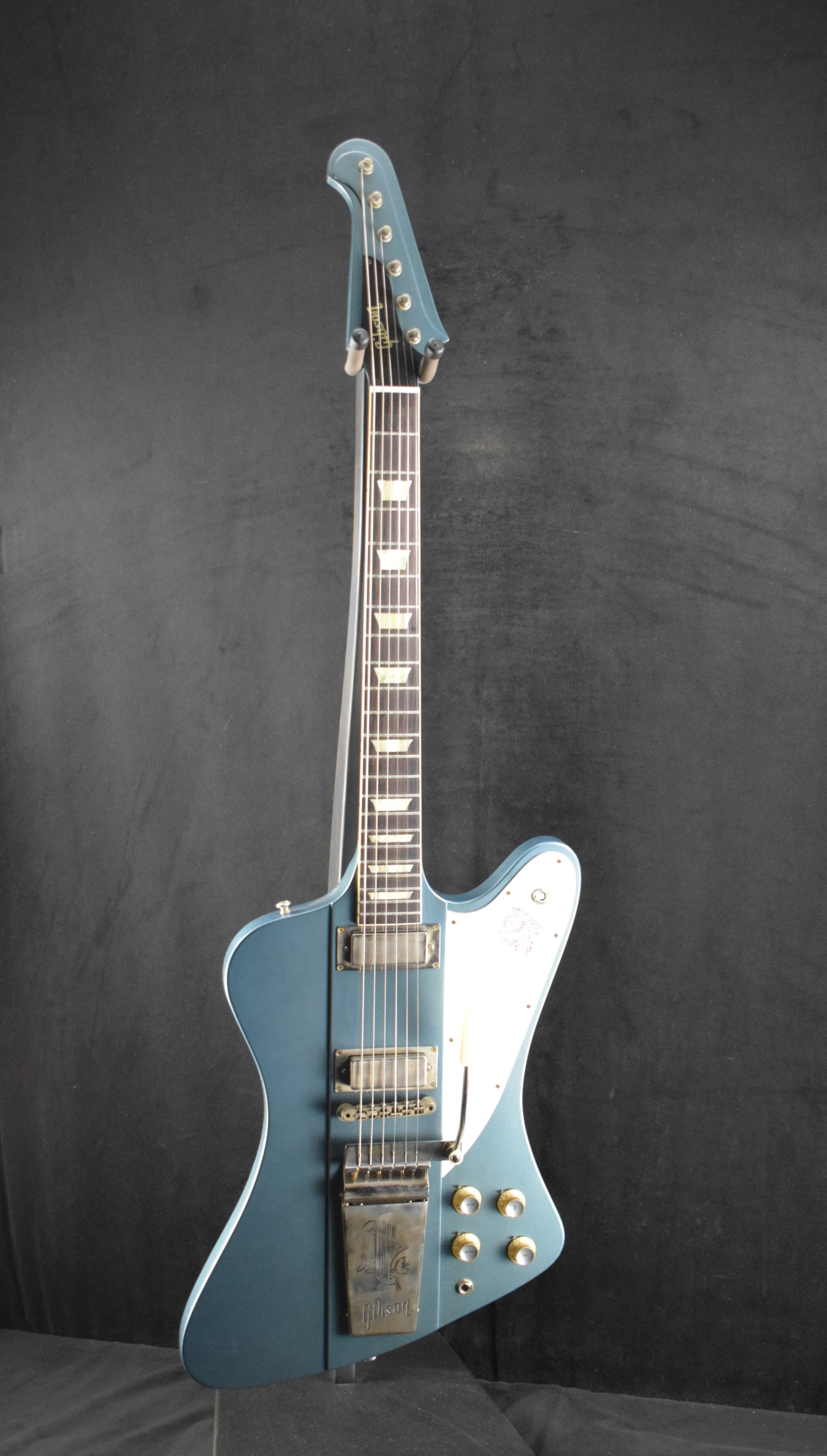

Gibson Murphy Lab 1963 Firebird V with Maestro Vibrola Ultra Light Aged Pelham Blue

Gibson Murphy Lab 1963 Firebird V with Maestro Vibrola Ultra Light Aged Pelham Blue

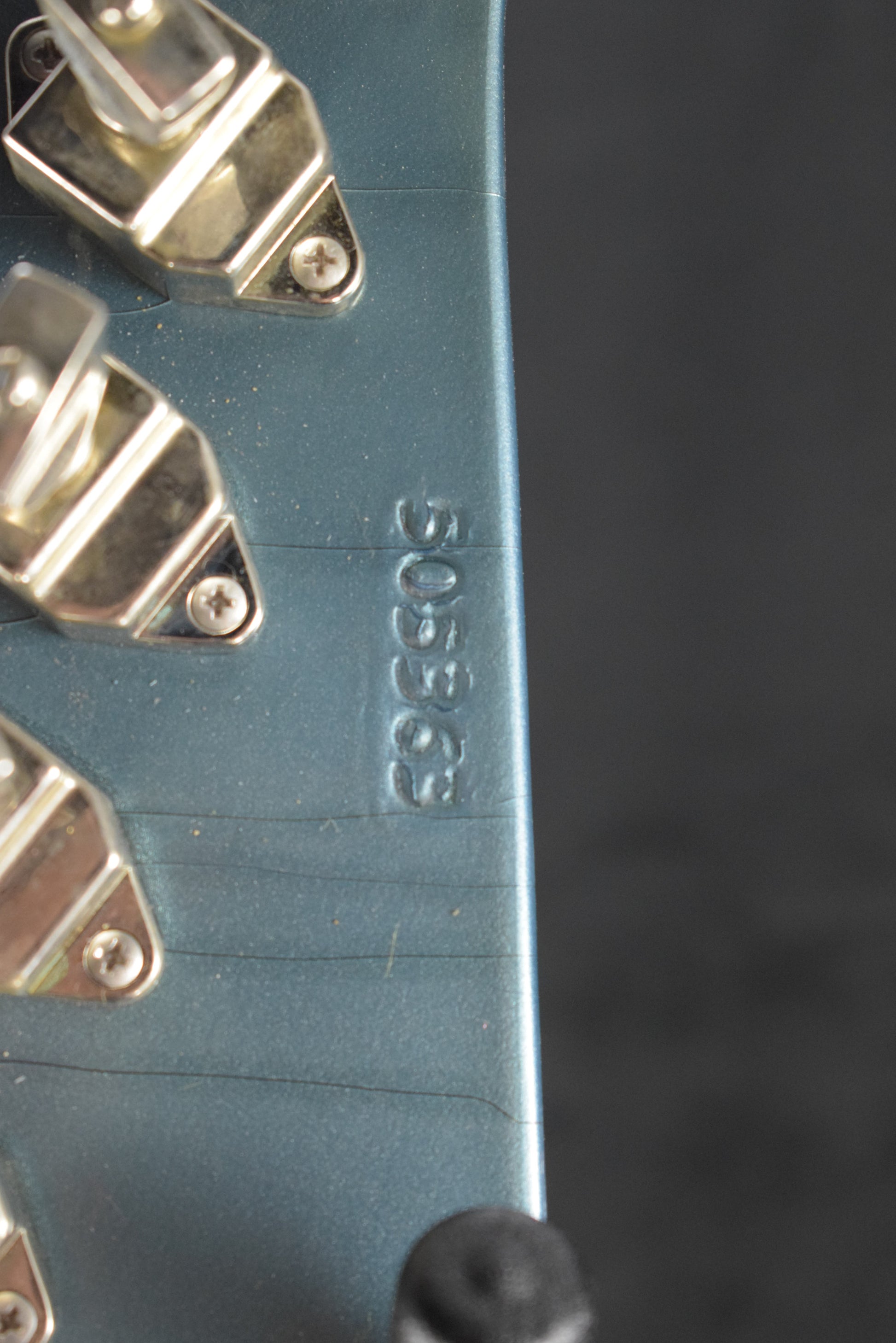

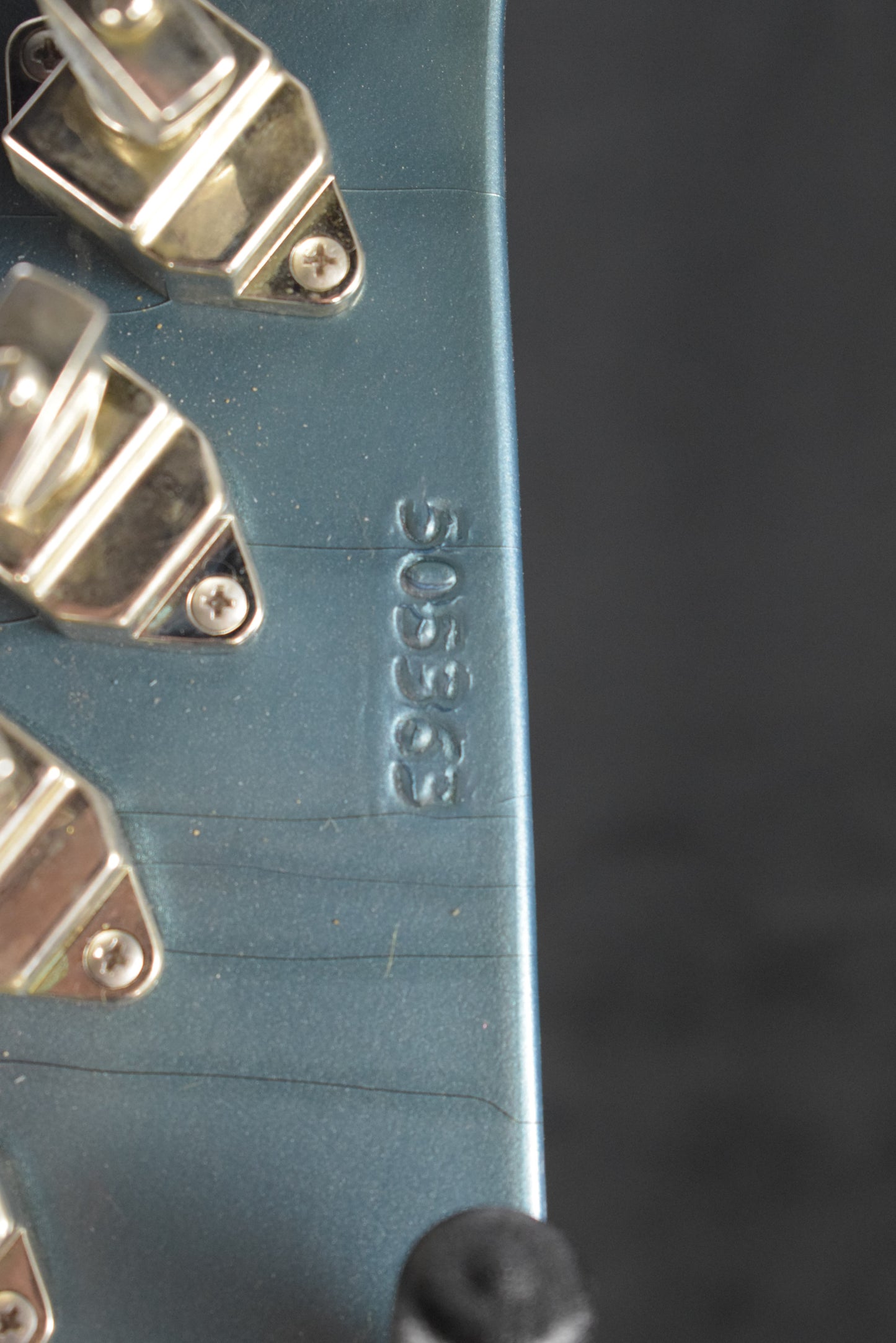

Serial Number 505363 weighs 8 lbs 11 oz

- Authorized Dealer - This item is Brand New with Full Factory Warranty.

- The photos shown are of the actual instrument being sold.

- Our luthiers at Fuller's Guitar thoroughly inspect and set up each instrument to factory specification action and neck relief prior to shipping to make sure that your new instrument is gig-ready right out of the box.

- Buy risk-free with our 14 day return policy (full refund, less shipping). Check out our shop policies for more details.

Fired up Since '63

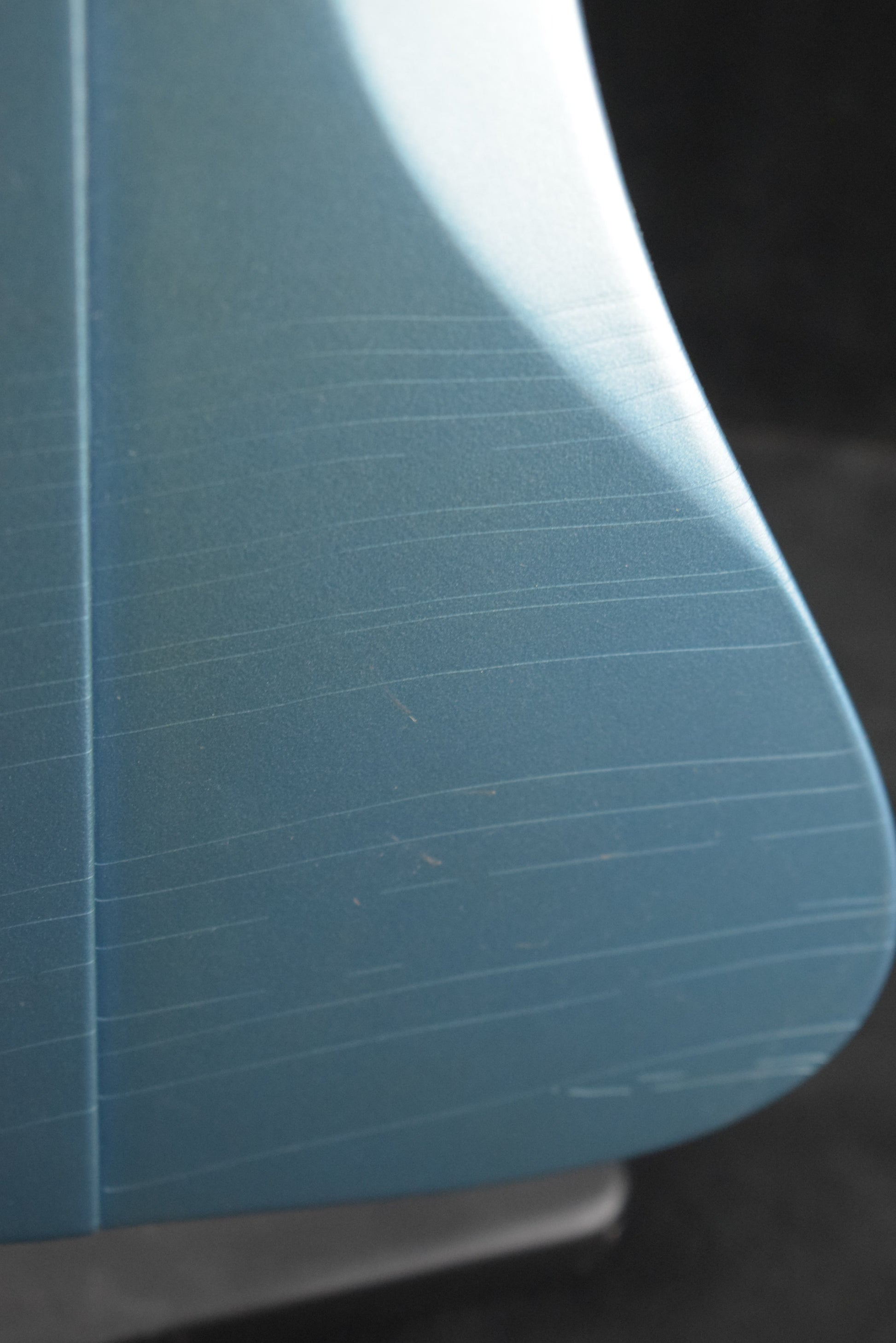

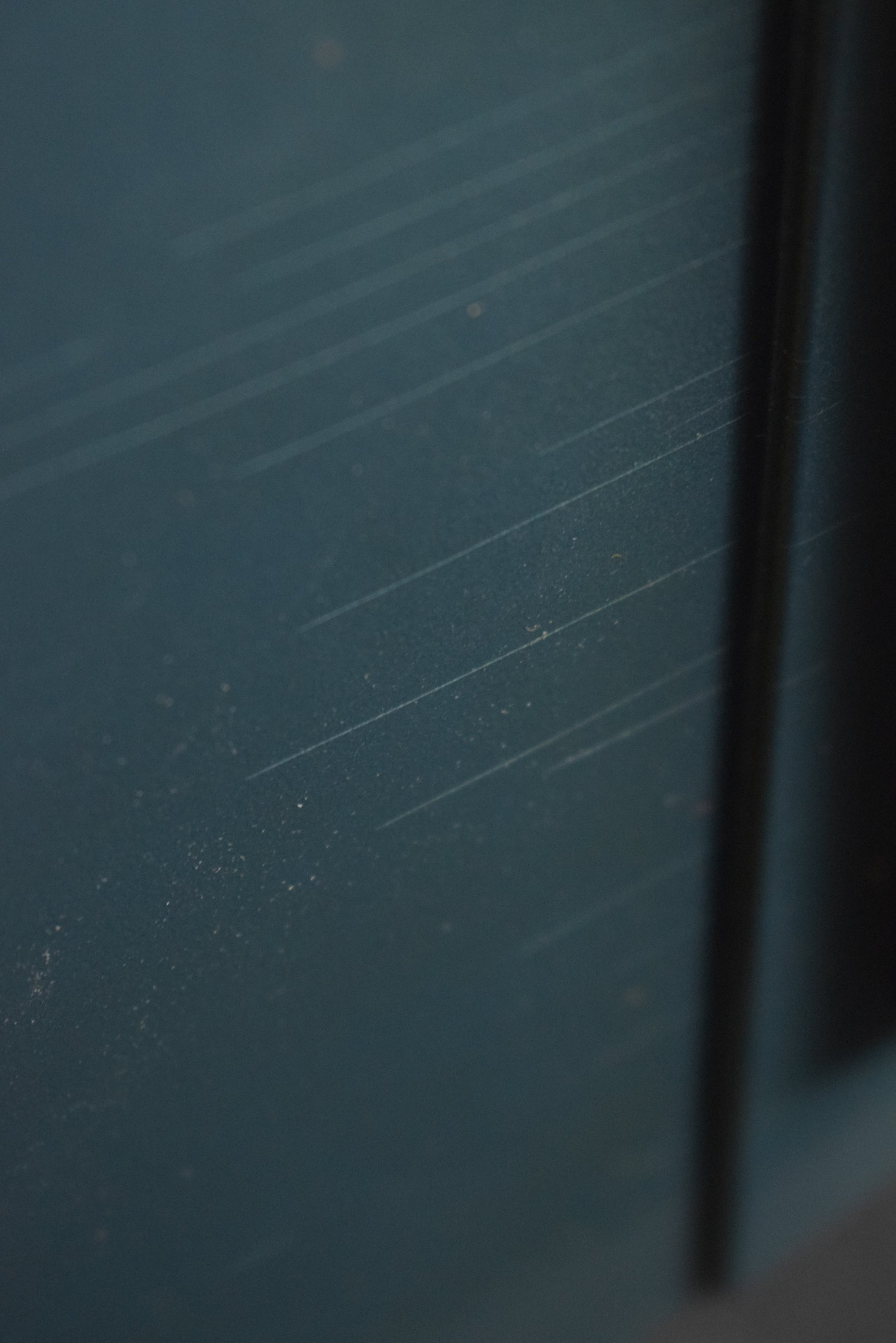

When Gibson hired famed automotive designer Ray Dietrich to create a radical new solid body guitar, rock 'n roll history ensued. With its offset shape, neck-through construction, and scorching mini-humbuckers™, the '63 Firebird™ V became an instant classic. The Gibson Custom Shop is proud to present this exacting replica of a vintage original, which uses authentic contours, dimensions and construction methods for an incredible ownership and playing experience. It features Ultra Light Aging by the skilled artisans of the Murphy Lab. The Murphy Lab Ultra Light Aged finish treatment, paired with lightly aged hardware, simulates decades of light play wear, giving it the unique character, vibe, and feel of an original example from the Gibson Golden Era.

Specifications

Body Specs
Body Finish Murphy Lab Aged Nitrocellulose Lacquer
Body Material Layered Mahogany
Body Shape Firebird
Body Styles Firebird
Weight Relief None

Neck Specs
End Of Board Width 56.89mm / 2.24in
Fingerboard Material Indian Rosewood
Fingerboard Radius 304.8mm / 12.0in
Fret Count 22
Frets Authentic Medium-Jumbo

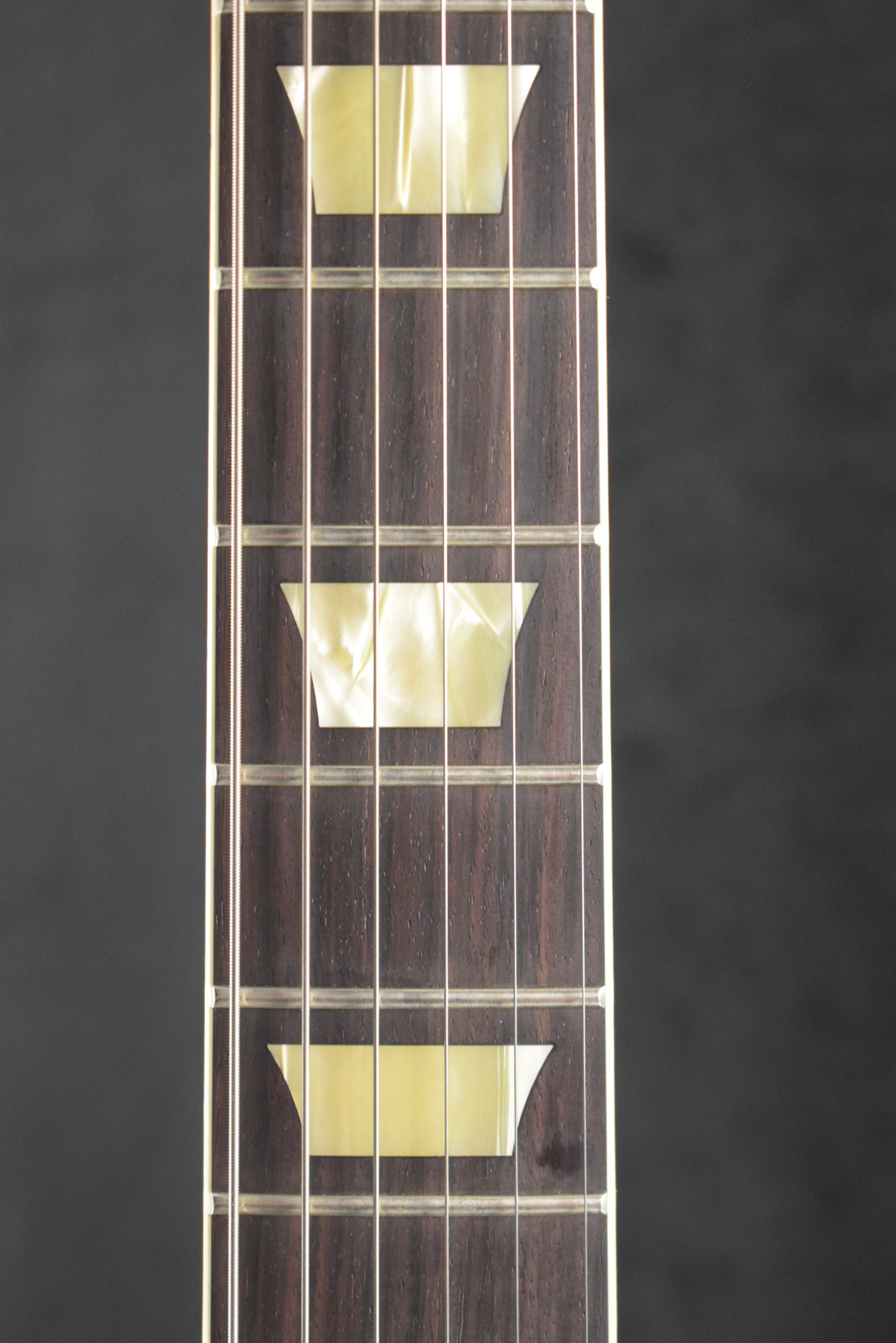

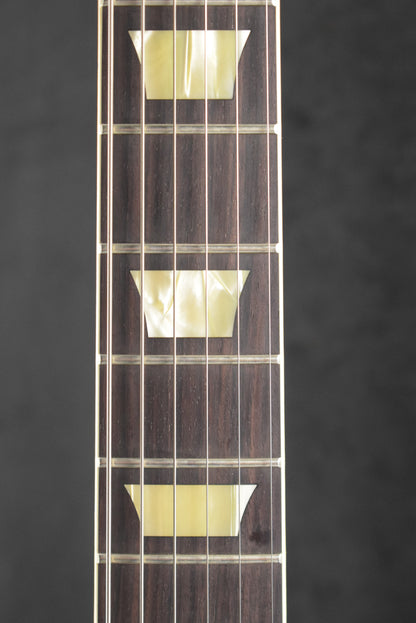

Inlays Aged Cellulose Nitrate Trapezoid
Joint Neck-Through Construction
Neck Material 9-ply Mahogany/Walnut Neck-Through
Nut Material Nylon
Nut Width 42.85mm / 1.69in
Profile Medium C
Scale Length 628.65mm / 24.75in

Electronics Specs
Bridge Pickup Firebird Alnico 5
Controls 2 Volume, 2 Tone, 500K CTS Potentiometers, Hand-Wired Harness
Neck Pickup Firebird Alnico 5
Output Jack 1/4" Switchcraft
Pickup Selector 3-Way Switchcraft

Hardware Specs
Bridge ABR-1
Control Covers Black

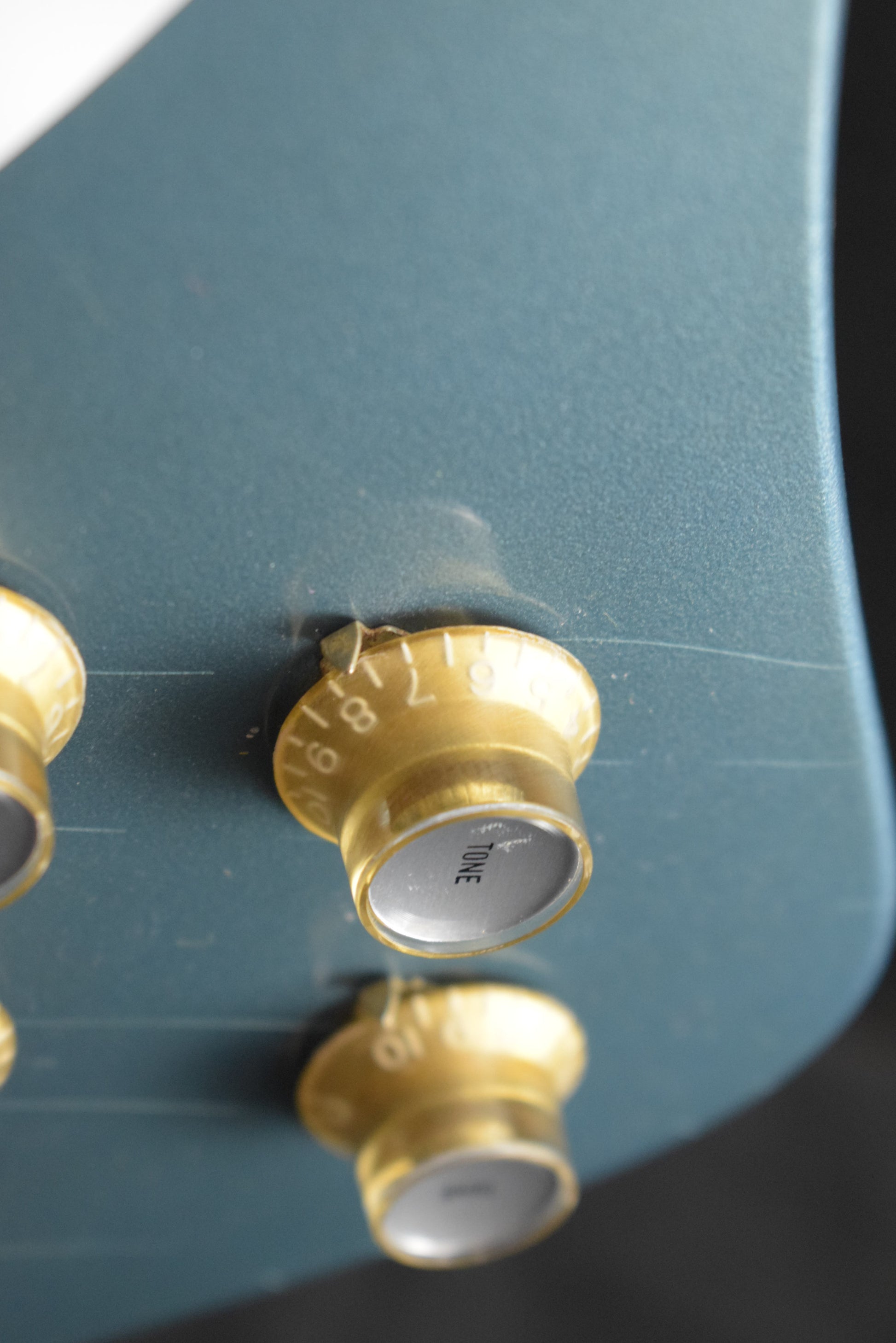

Control Knobs Gold Top Hats with Silver Inserts
Finish Nickel; Murphy Lab Light Aged
Pickguard 3-Ply White/Black/White Firebird Hot-stamped
Pickup Covers Nickel
Saddle Material Nickel-plated Brass
Strap Buttons Aluminum
Switch Tip Cream
Tailpiece Maestro Vibrola
Truss Rod 2-way Adjustable
Truss Rod Cover Black 1-Ply Gibson Hot-stamped
Tuner Plating Nickel

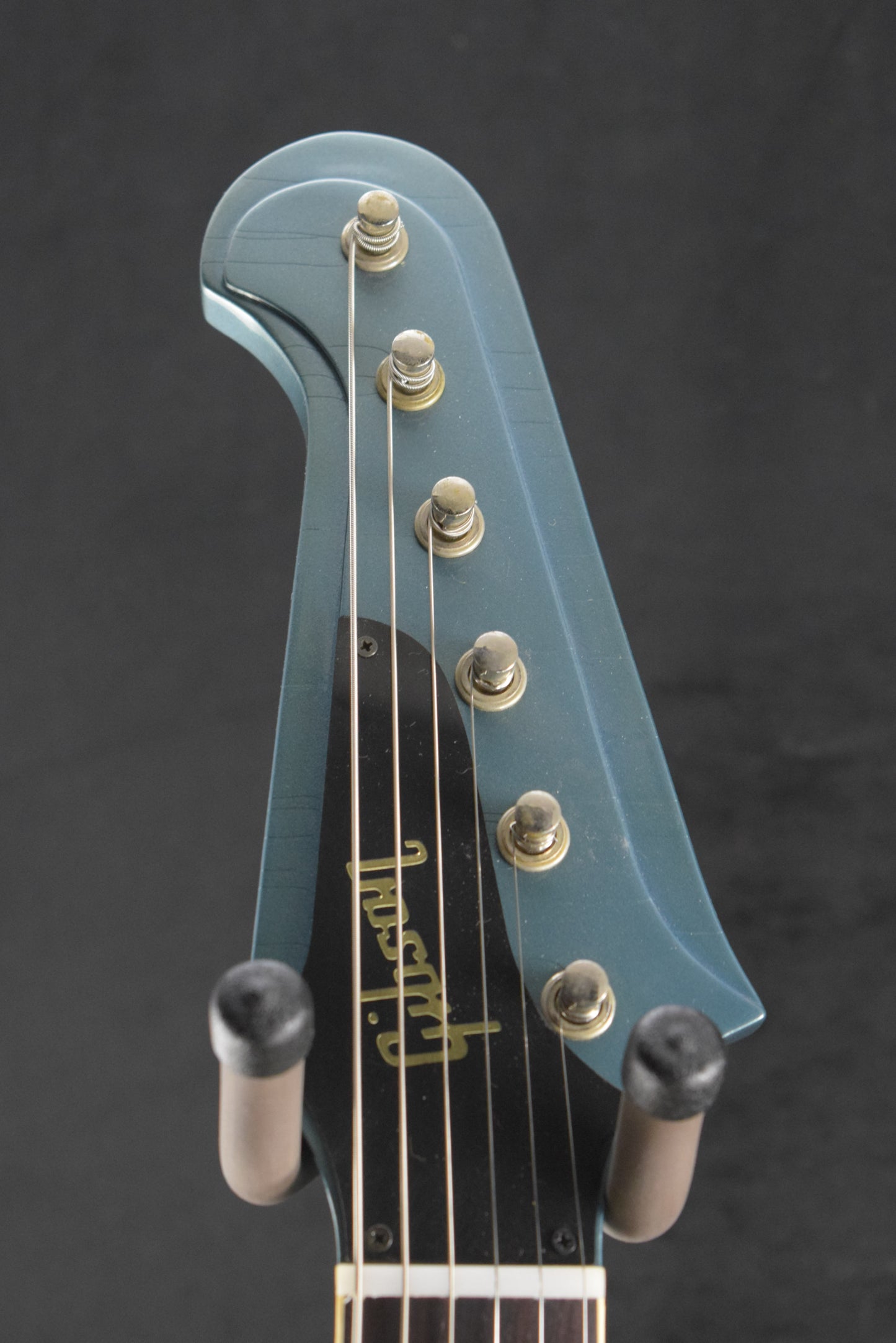

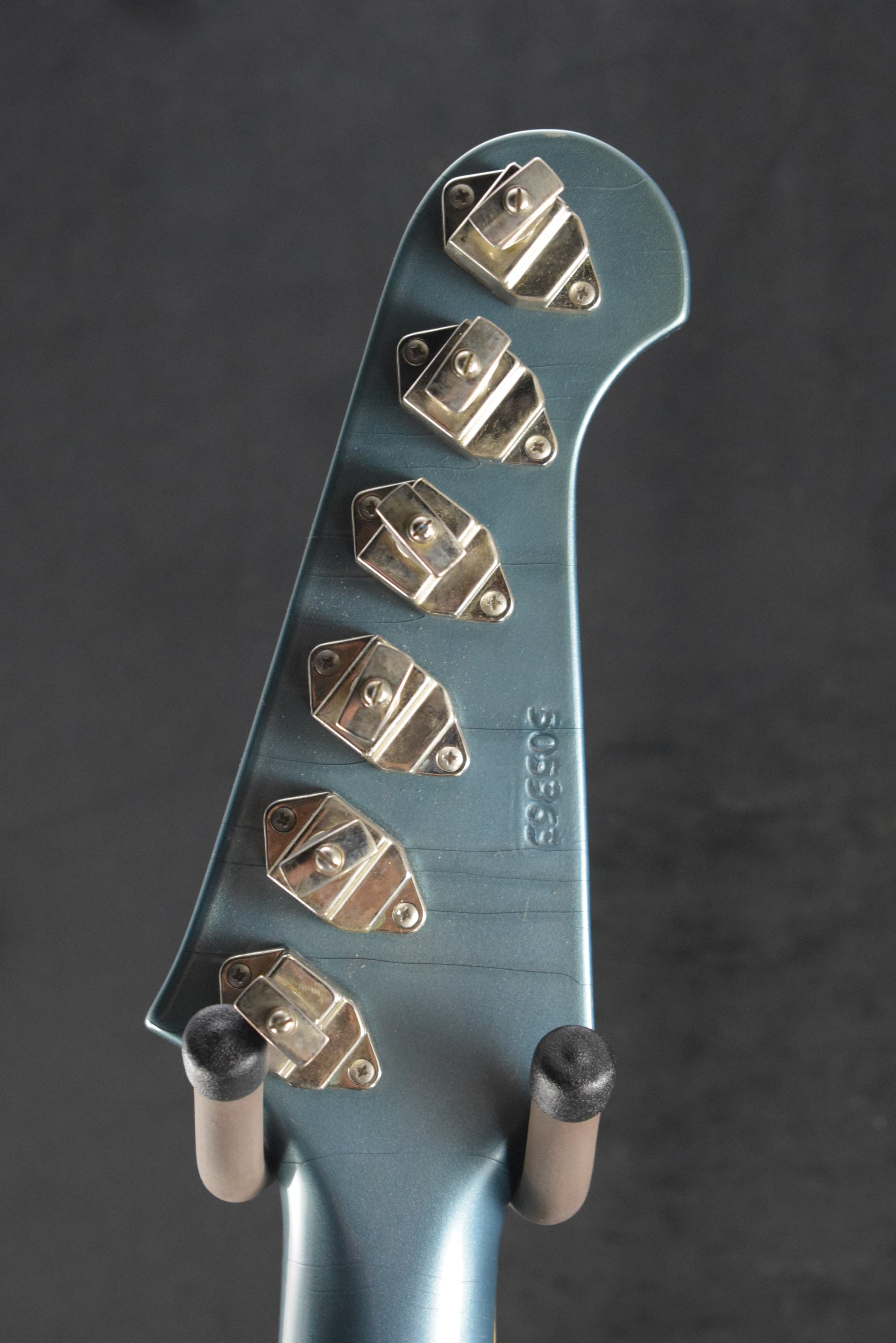

Tuning Machines Deluxe Banjo Tuners

Misc Specs
Accessories Certificate of Authenticity
Model: FB5ULPBNM1
Case Custom Shop Hardshell
Strings Gauge .010, .013, .017, .026, .036, .046
